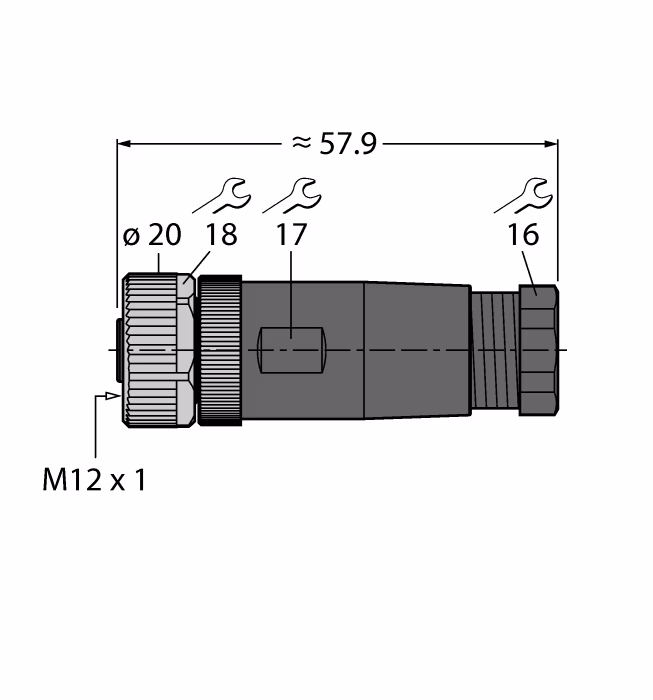

Field-Wireable Connector BM8141-0/PG9
Field-Wireable Connector
| Application | Signal |
|---|---|
| Approvals | cULus recognized |
| Connection mode | Screw/clamp connection |
| Connector A | A-coded, Female, M12×1, Straight |
| Coupling nut/screw material A | Die-cast Zinc |
| Cross-sectional connection max. (mm²) | 0.75 mm² |
| Current (A) | 4 |
| Device type | Field-wireable connector |
| Number of pins | 4 |
| Plug body | Plastic |
| Screw-in thread | PG9 |
| Voltage output | 250 |
