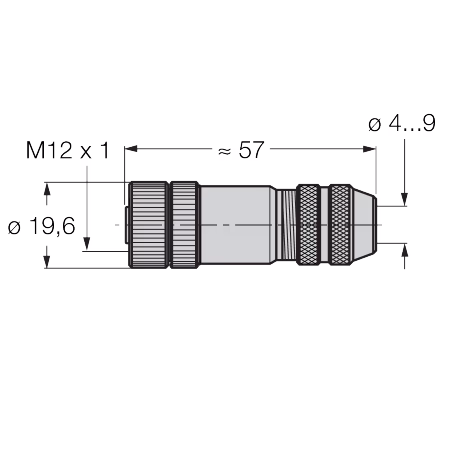

Field-Wireable Connector BMS8141-0/9
Field-Wireable Connector
| Application | Data |
|---|---|
| Connection mode | Screw/clamp connection |
| Connection technology signal | M12 |
| Connector A | A-coded, Female, M12×1, Straight |
| Coupling nut/screw material A | Brass |
| Cross-sectional connection max. (mm²) | 0.75 mm² |
| Device type | Field-wireable connector |
| Network protocol | PROFIBUS-PA |
| Number of pins | 4 |
| Plug body | Metal |
| Screw-in thread | PG9 |
| Voltage output | 125 |
