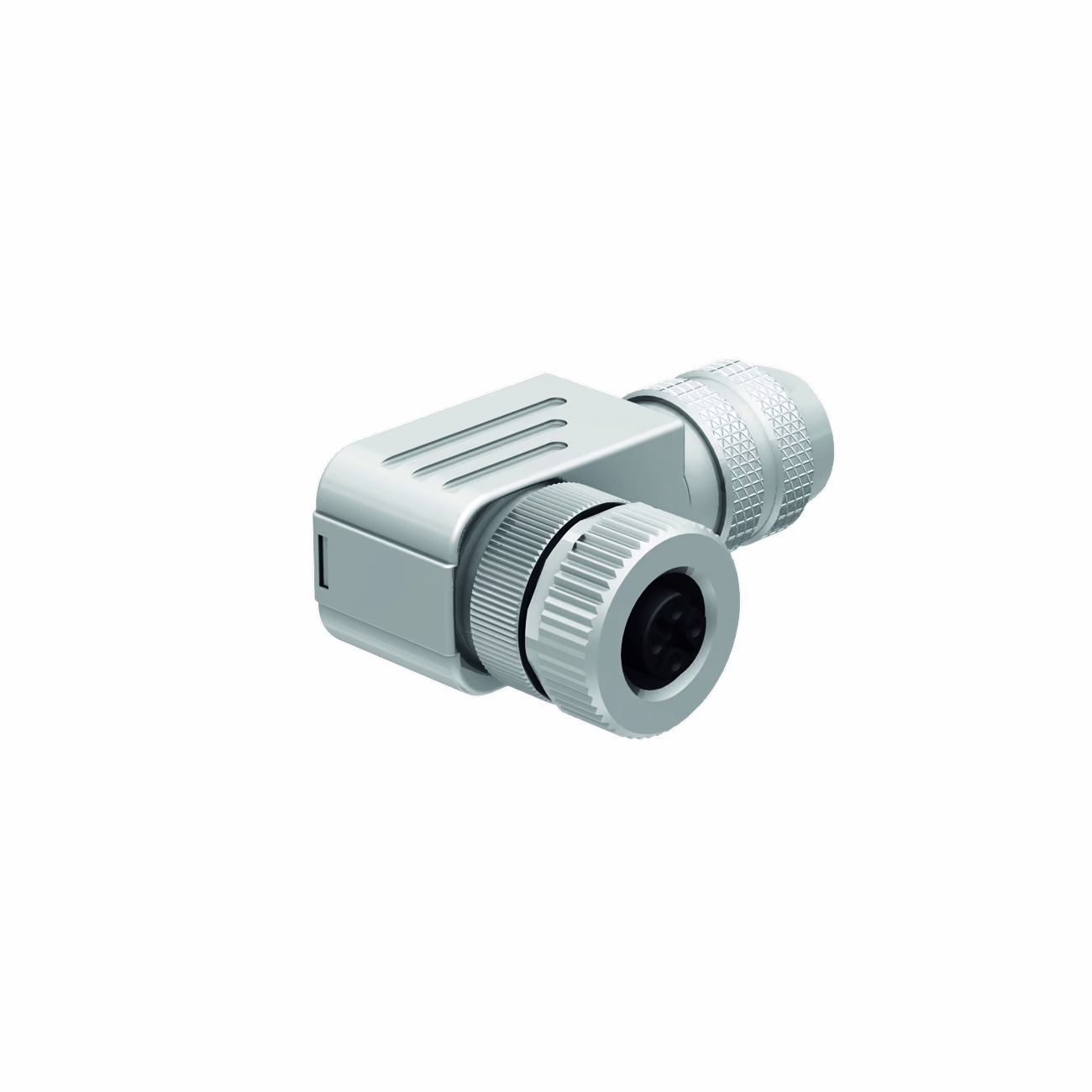

Field-Wireable Connector BMWS8251-0/9
Field-Wireable Connector
| Application | Signal |
|---|---|
| Approvals | cULus recognized |
| Connection mode | Screw/clamp connection |
| Connector A | Angled, B-coded, Female, M12×1 |
| Coupling nut/screw material A | Die-cast Zinc |
| Current (A) | 4 |
| Device type | Field-wireable connector |
| Network protocol | PROFIBUS-DP |
| Number of pins | 5 |
| Plug body | Die-cast Zinc |
| Screw-in thread | PG9 |
| Voltage output | 60 |
