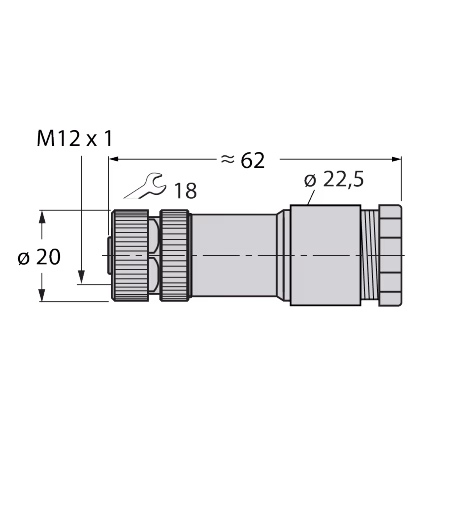

Field-Wireable Connector BWS8151-12.5
Field-Wireable Connector
| Application | Signal |
|---|---|
| Approvals | cULus recognized |
| Connection mode | Screw/clamp connection |
| Connector A | B-coded, Female, M12×1, Straight |
| Coupling nut/screw material A | Die-cast Zinc |
| Current (A) | 9 |
| Device type | Field-wireable connector |
| Number of pins | 5 |
| Plug body | Plastic |
| Voltage output | 125 |
