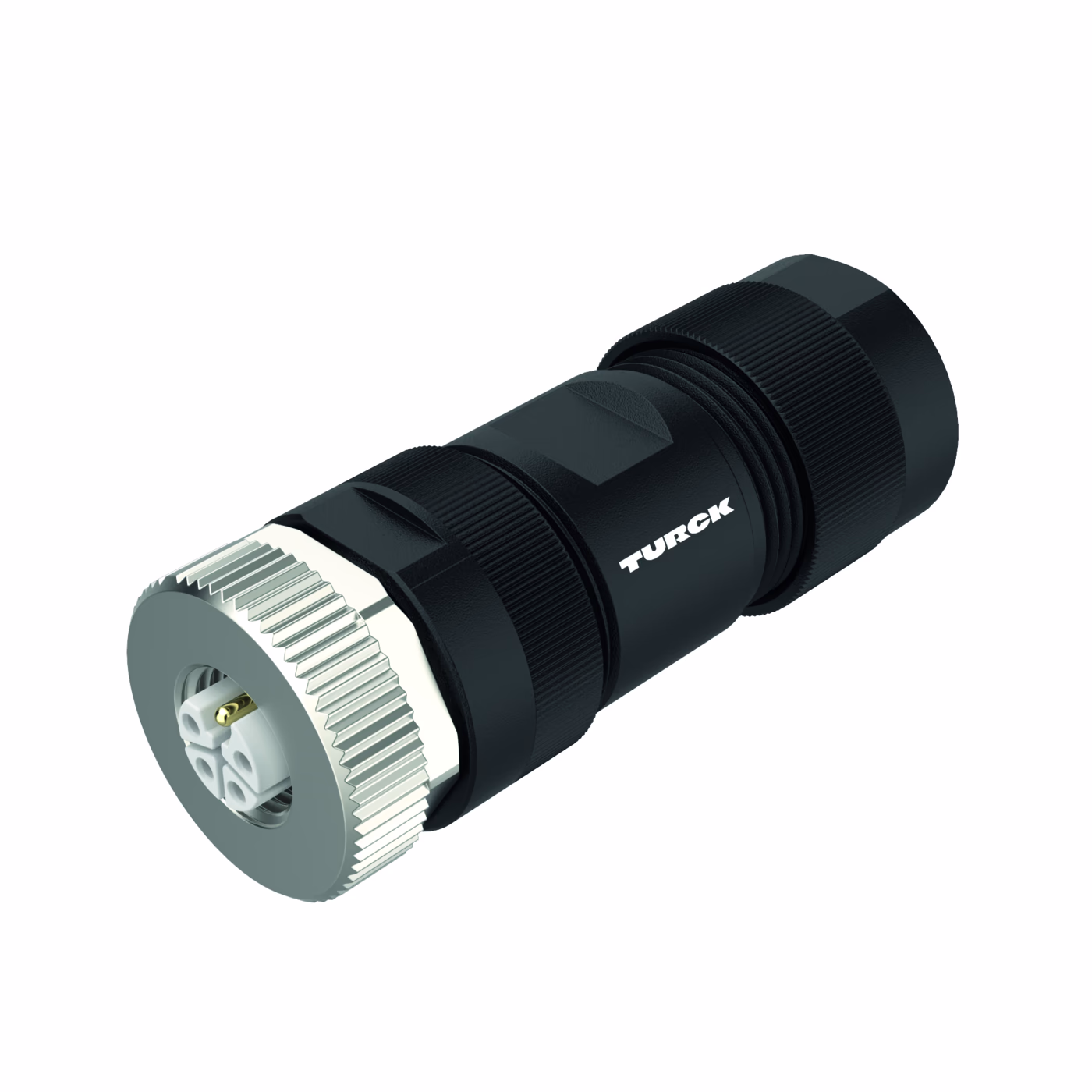

Field-Wireable Connector FW-ERKPM0514-PL-S-0813
Field-Wireable Connector
| Application | Power |
|---|---|
| Approvals | cULus recognized |
| Connection mode | Screw/clamp connection |
| Connector A | Female, L-coded, M12×1, Straight |
| Coupling nut/screw material A | Die-cast Zinc |
| Cross-sectional connection max. (mm²) | 2.5 mm² |
| Current (A) | 16 |
| Device type | Field-wireable connector |
| Number of pins | 4+FE |
| Plug body | Plastic |
