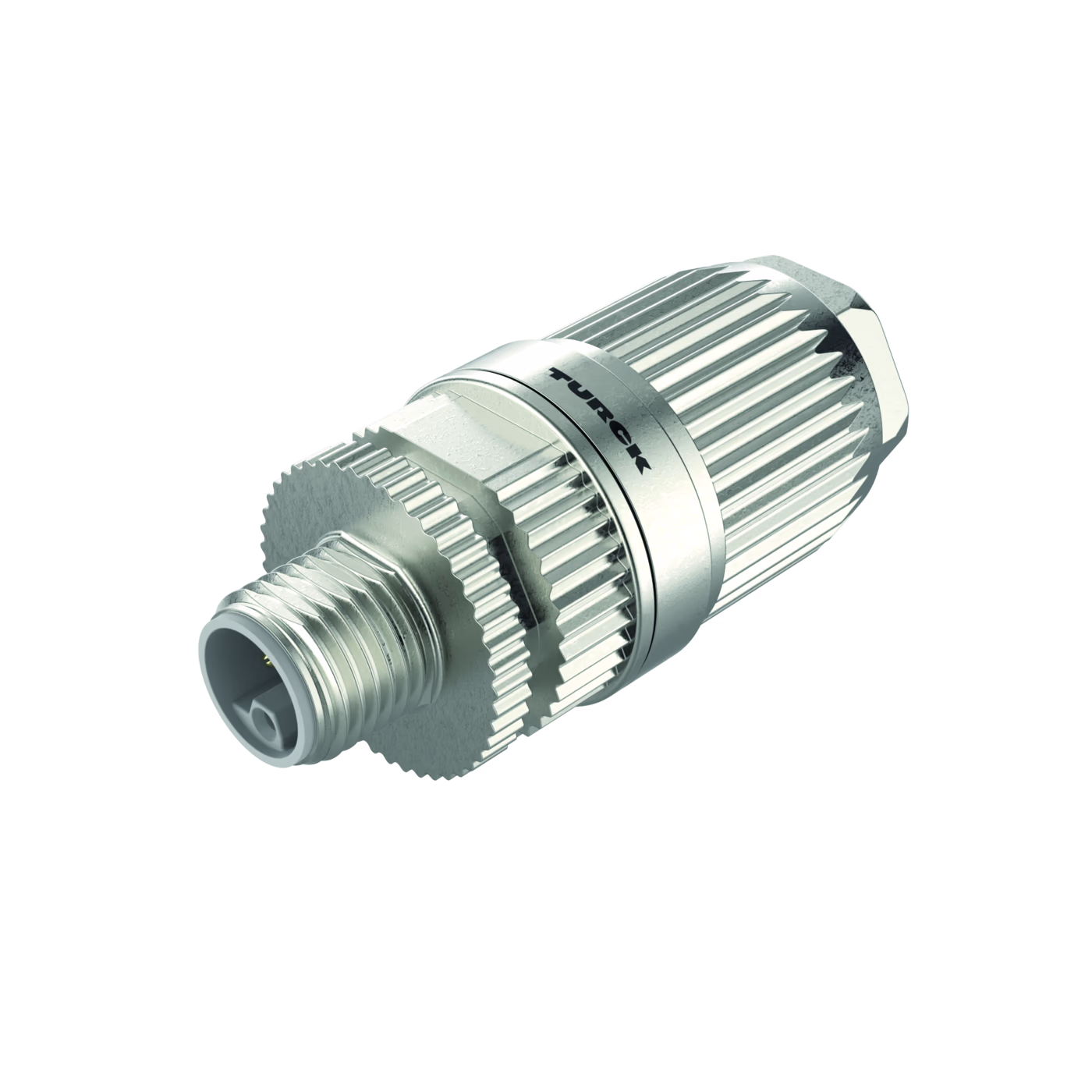

Field-Wireable Connector FW-ERSSM0516-PL-I-0613
Field-Wireable Connector
| Application | Power |
|---|---|
| Approvals | cULus |
| Connection mode | Insulation displacement terminal |
| Connector A | L-coded, M12×1, Male, Straight |
| Coupling nut/screw material A | Die-cast Zinc |
| Cross-sectional connection max. (mm²) | 1.5 mm² |
| Current (A) | 12 |
| Device type | Field-wireable connector |
| Number of pins | 4+FE |
| Plug body | Die-cast Zinc |
