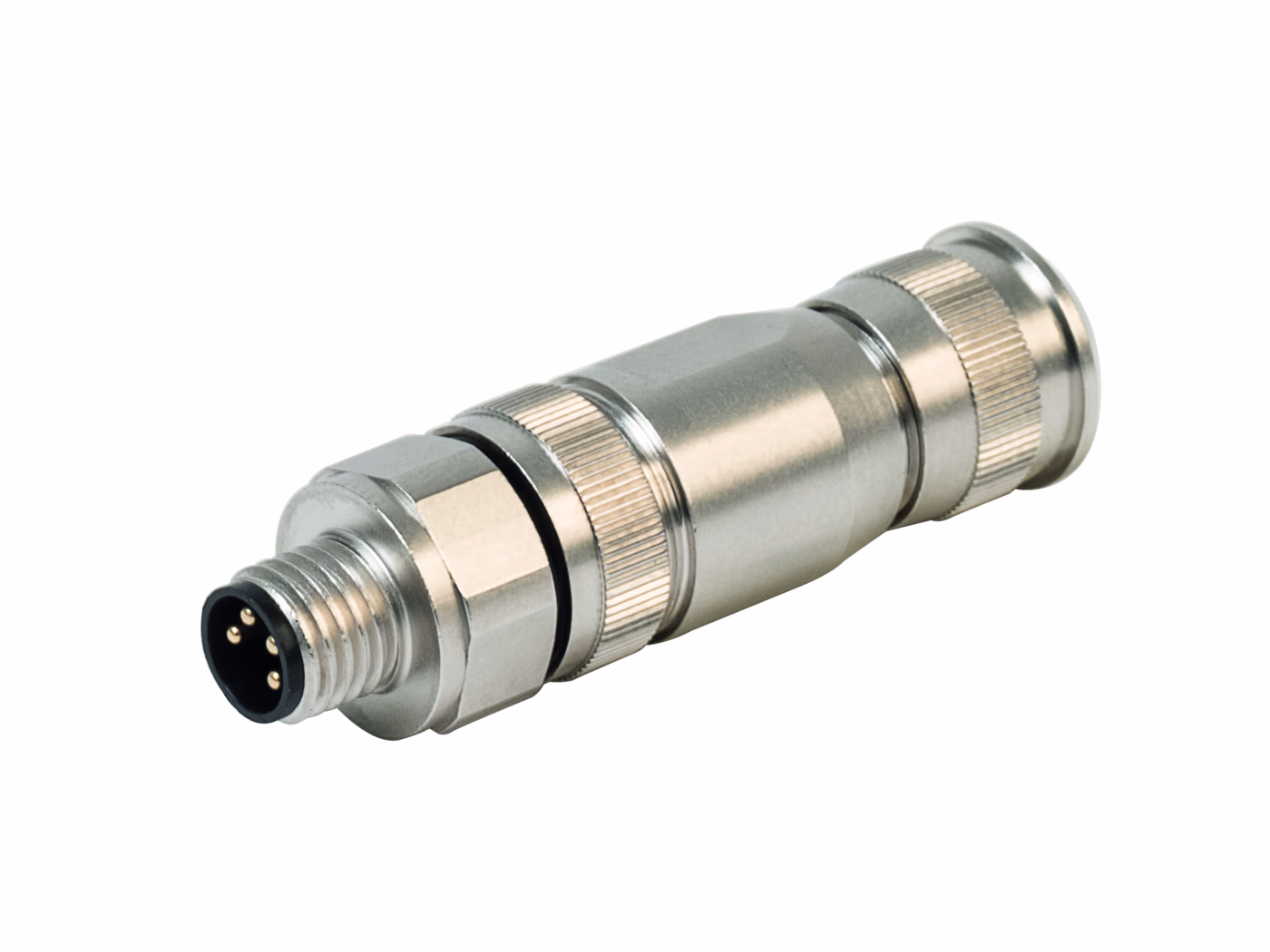

Field-Wireable Connector FW-M8ST4-G-SB-ME-SH-6.5
Field-Wireable Connector
| Application | Data, Signal |
|---|---|
| Approvals | cULus |
| Connection mode | Screw/clamp connection |
| Connector A | A-coded, M8×1, Male, Straight |
| Coupling nut/screw material A | Brass |
| Cross-sectional connection max. (mm²) | 0.5 mm² |
| Current (A) | 4 |
| Device type | Field-wireable connector |
| Network protocol | Ethernet |
| Number of pins | 4 |
| Plug body | Brass |
| Voltage output | 30 |
