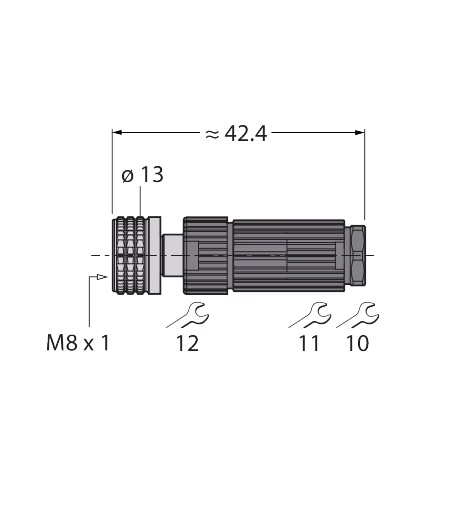

Field-Wireable Connector H5141-0
Field-Wireable Connector
| Application | Signal |
|---|---|
| Connection mode | Screw/clamp connection |
| Connector A | Female, M8×1, Straight |
| Coupling nut/screw material A | Zinc-Aluminum |
| Cross-sectional connection max. (mm²) | 0.34 mm² |
| Current (A) | 4 |
| Device type | Field-wireable connector |
| Number of pins | 4 |
| Plug body | Plastic |
| Screw-in thread | M9.5×1 |
