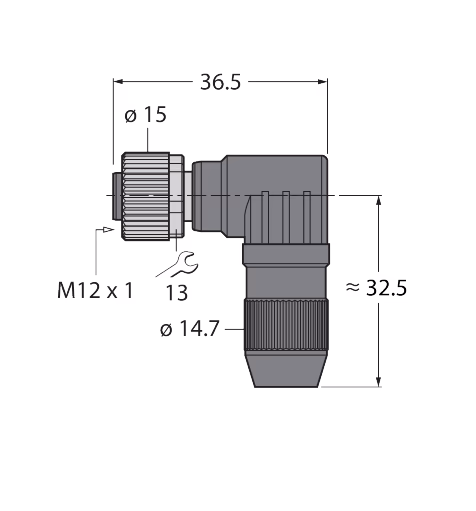

Field-Wireable Connector HA8241-0
Field-Wireable Connector
| Application | Signal |
|---|---|
| Connection mode | Screw/clamp connection |
| Connector A | A-coded, Angled, Female, M12×1 |
| Coupling nut/screw material A | Brass |
| Cross-sectional connection max. (mm²) | 0.5 mm² |
| Current (A) | 4 |
| Device type | Field-wireable connector |
| Number of pins | 4 |
| Plug body | Plastic |
| Screw-in thread | M12 × 1 |
| Voltage output | 32 |
