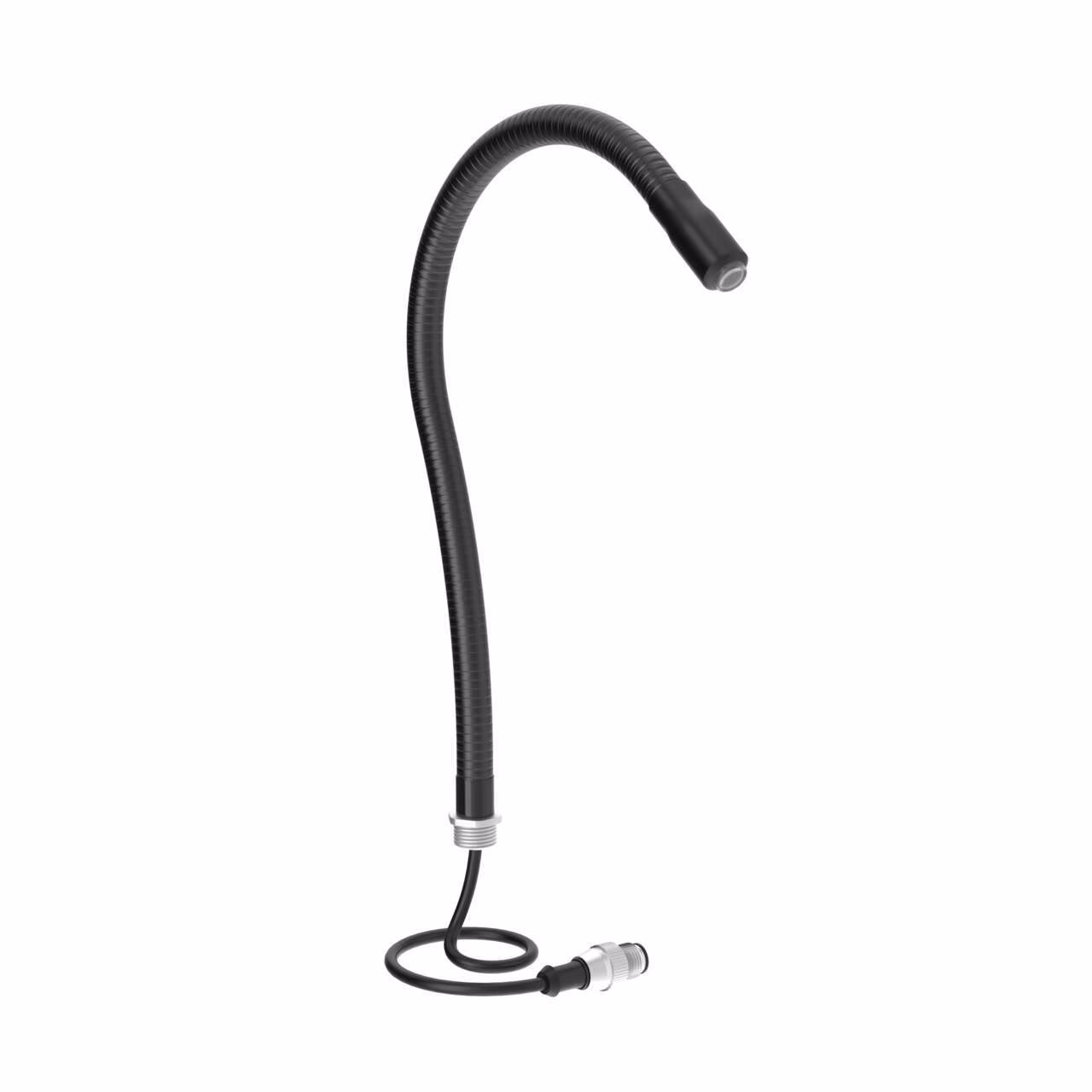

Flex Arm Lights Series – Banner – K-FLX18-18W12XQP
Flex Arm Light 18 in
S18 No Touch; White: 5K
1/2 in Base; No Bracket
4-pin M12 Pigtail QD
| Color Technology | Standard LED |
|---|---|
| Connection | Pigtail QD |
| Feature: Audible | No |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Clear |
| Secondary Material | Metal |
| Animation Option 1 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Daylight White |
| Eye Shield | No |
| Feature | Quick Disconnect, Washdown Rated |
| Housing Style | Flex Arm |
| Indication | No |
| Item Status | RELEASED |
| Light type | Yes |
| Lumens Color 1 | 20.0 |
| Mounting | 1/2 – 14 |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 4.0 |
| Operating voltage | 9-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 23.5 x 450 |
| Port | M12 |
| Power Good Output | DC |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Slot width (mm) | 0.3 |
| Touchscreen | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 60.0 |
| Product Size (mm) | 18 |
| Max Current Color (mA) | 60.0 |
| Storage Temp (C) | -40 to 70 |
Description
Flex Arm Light 18 in
S18 No Touch; White: 5K
1/2 in Base; No Bracket
4-pin M12 Pigtail QD
