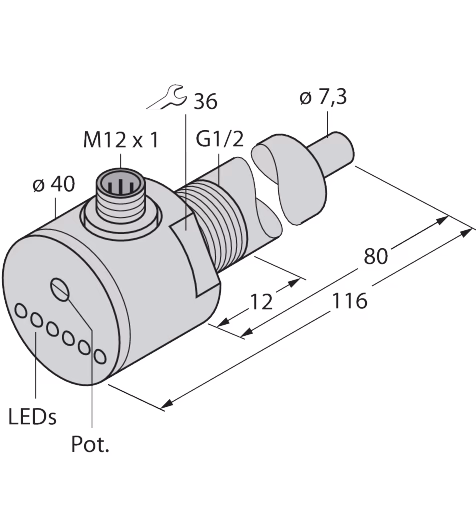

Flow Monitoring FCS-G1/2A4-AP8X-H1141/L080
Flow Monitoring
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Application area | Standard |
| Approvals | cULus |
| Connector type | M12 × 1 |
| Design | Immersion |
| Detection type | Calorimetric |
| Electrical output | Connector |
| Function | Flow monitoring |
| Housing material | Stainless steel |
| Housing quality | 1.4571 (AISI 316Ti) |
| Media temperature max. (°C) | 80 |
| Media temperature min. (°C) | -20 |
| Medium | liquids |
| Mounting conditions | Immersion sensor |
| Operating voltage | DC |
| Output function | PNP |
| Process connection | G 1/2” |
| Protection class | IP67 |
| Switching element function | NO contact |
