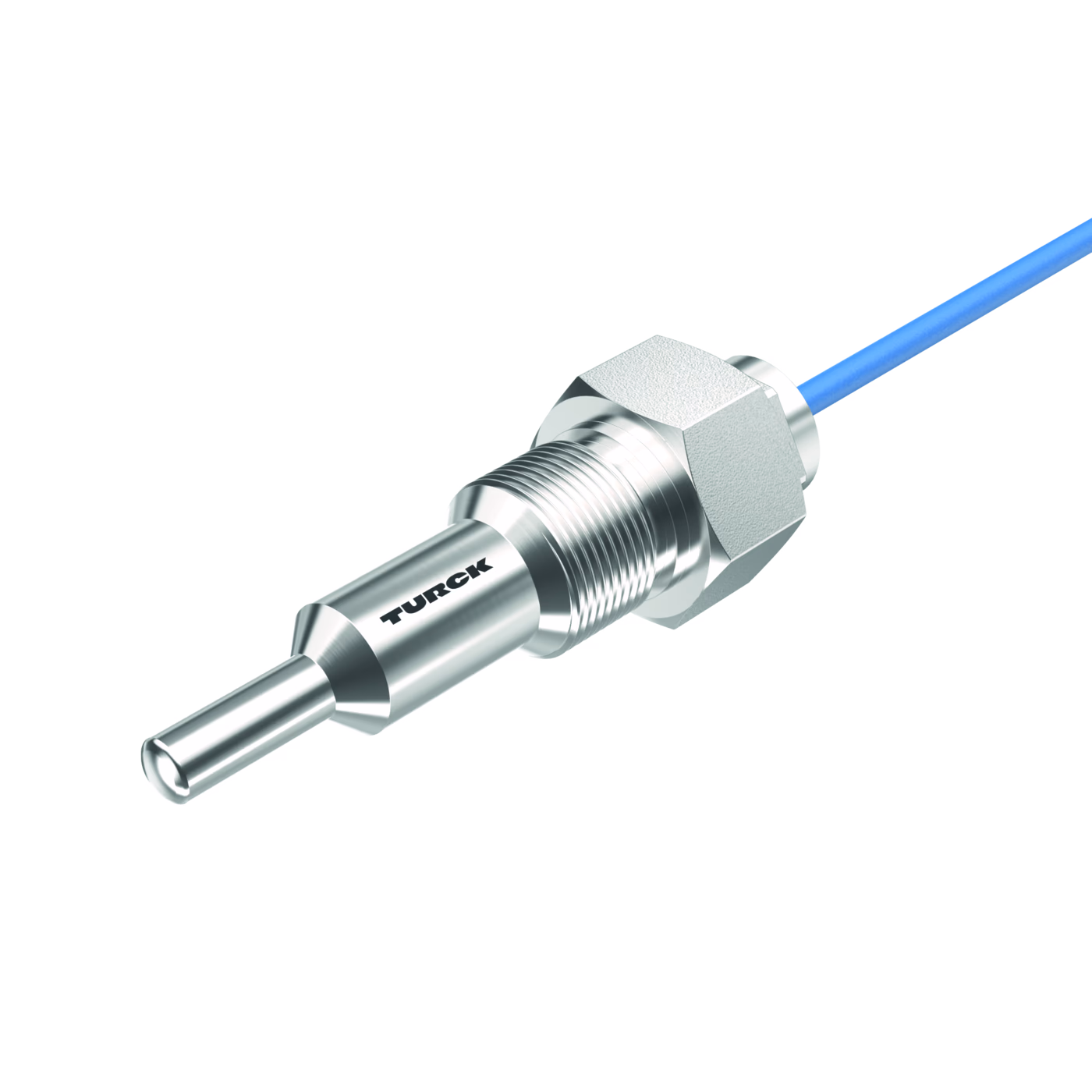

Flow Monitoring FCS-G1/2A4-NAEX/AL065
Flow Monitoring
| Application area | Explosion hazard (zone 1) |
|---|---|
| Approvals | ATEX, CE, GOST, UKCA |
| Cable color | Blue |
| Cable length (m) | 2 |
| Design | Immersion |
| Detection type | Calorimetric |
| Electrical output | Cable |
| Function | Flow monitoring |
| Housing material | Stainless steel |
| Housing quality | 1.4571 (AISI 316Ti) |
| Media temperature max. (°C) | 85 |
| Media temperature min. (°C) | -20 |
| Medium | gases |
| Mounting conditions | Immersion sensor |
| Process connection | G 1/2” |
| Protection class | IP67 |
