Flow Sensor FS100-300L-00-2UPN8-H1141
Flow Sensor
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Approvals | CE, cULus |
| Bar length (mm) | 45 |
| Communication protocol | IO-Link |
| Connector type | M12 × 1 |
| Design | With display (integrated probe) |

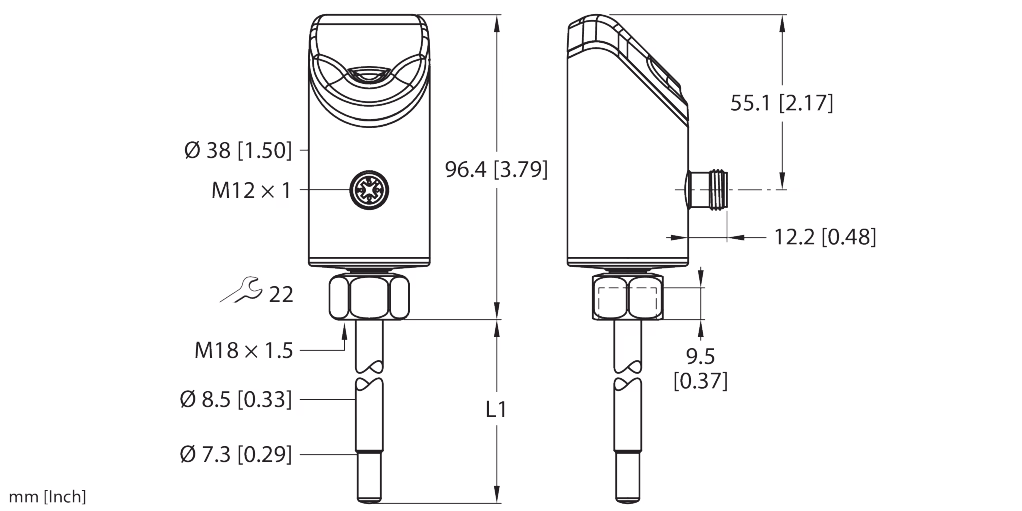

| Dimensions | 141.4 mm x 38 mm x 49 mm |
| Display | LED display functions for status of supply voltage, switching states and teach processes. Process indicators via bar graph. |
| Electrical connection | 2 × switching output, IO-Link |
| Electrical output | Connector |
| Function | Flow monitoring |
| Housing material | Stainless-steel/Plastic |
| Housing quality | 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5 |
| Materials (contact with media) | AFM flat seal, FKM O-ring, Stainless steel 1.4571 (AISI 316Ti) |
| Media temperature max. (°C) | 85 |
| Media temperature min. (°C) | -25 |
| Medium | liquids |
| Mounting conditions | Immersion sensor |
| Output function | PNP/NPN |
| Protection class | IP66 |
| Switching element function | NO/NC programmable |
