Flush-Mount Emergency Stop Button – Banner – SSA-EB1PLYR-12ED1
Emergency Stop: Flush Mounting 40 mm Push Button
Environ. Rating: IP65; Lighted; Color: Yellow, Red Solid/Flashing
2 N.C. Safety Contacts; 1 N.O. aux. Contacts
SPRF 23331

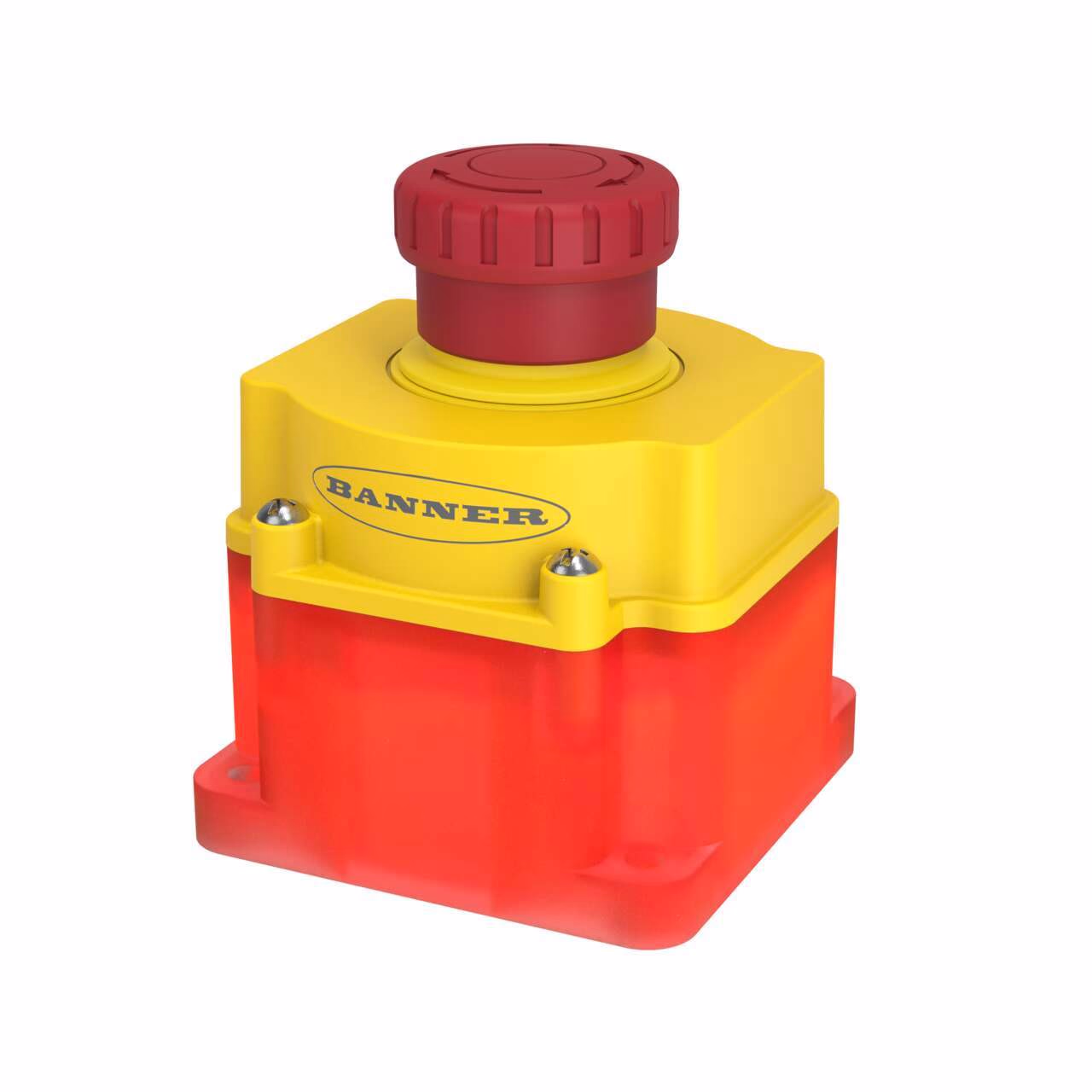

| Actuated Color | Red – Flash |
|---|---|

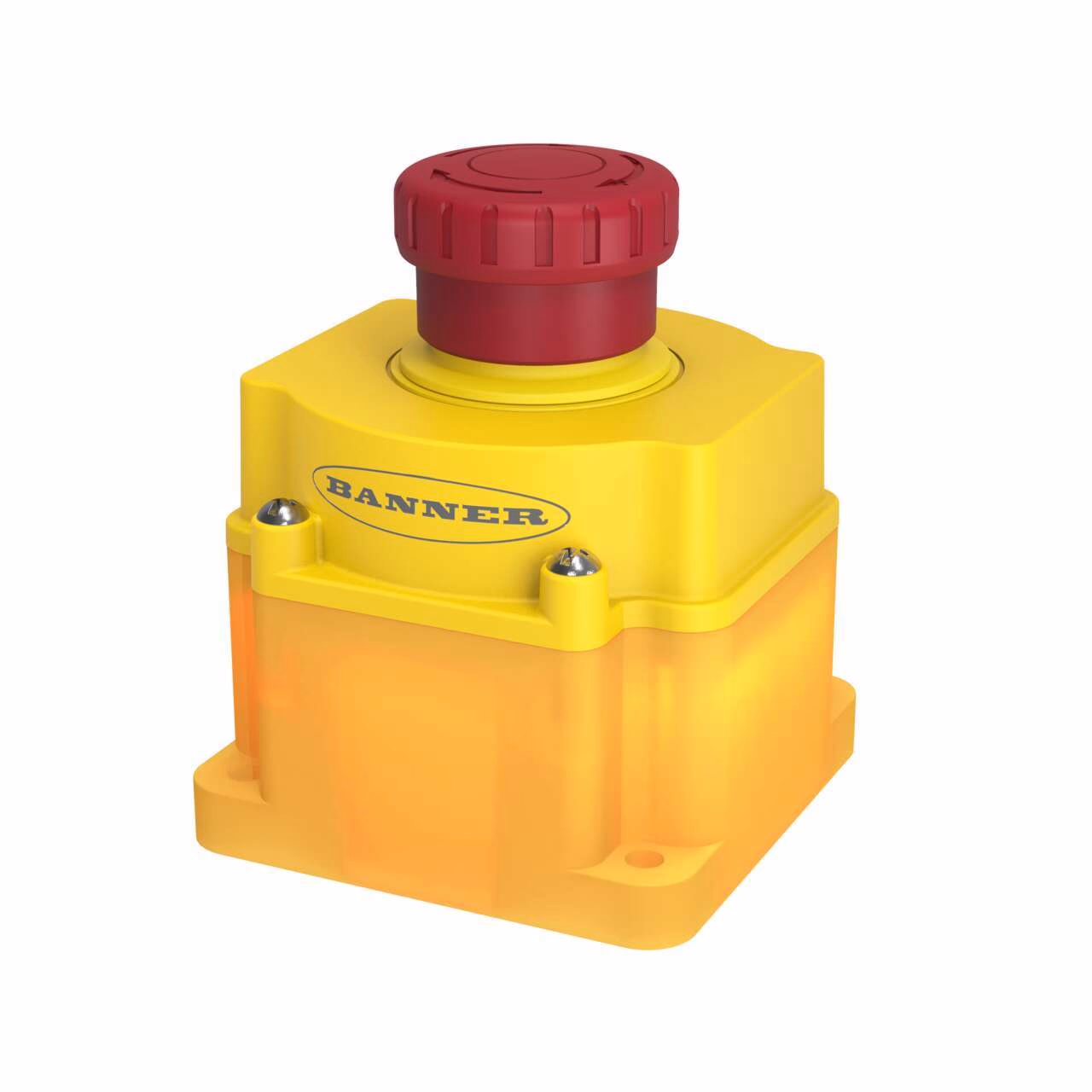

| Armed Color (Solid) | Yellow |
| Button Diameter (mm) | 40.0 |
| Contact Quantity | 2 NC, 1 NO |
| Contact Rating | 2 A @ 24 V dc |
| Dimensions (HxWxD mm ) | 103 x 110 x 81 |
| Illumination Type | Base |
| In-Series Diagnostics | No |
| Max Operating Temperature (C) | 55.0 |
| Min Operating Temperature (C) | -25.0 |
| Mounting Thread/Style | Flat |
| Stop Signal Color ( Solid) | Red |
| Actuation | Twist/Pull-to-Release |
| Device type | Push Button |
| EPLAN Original Sent Date | 10/18/2024 |
| EPLAN Status | Published |
| Feature | Illuminated |
| Housing Style | Base |
| Item Status | RELEASED |
| Operating voltage | 12-30 V dc |
| Protection class shaft | IP65 |
| Receptacle housing material A | Thermoplastic |
| Receptacle housing material B | Polycarbonate |
| Voltage supply connection | Terminal Strip |
Description
Emergency Stop: Flush Mounting 40 mm Push Button
Environ. Rating: IP65; Lighted; Color: Yellow, Red Solid/Flashing
2 N.C. Safety Contacts; 1 N.O. aux. Contacts
SPRF 23331
