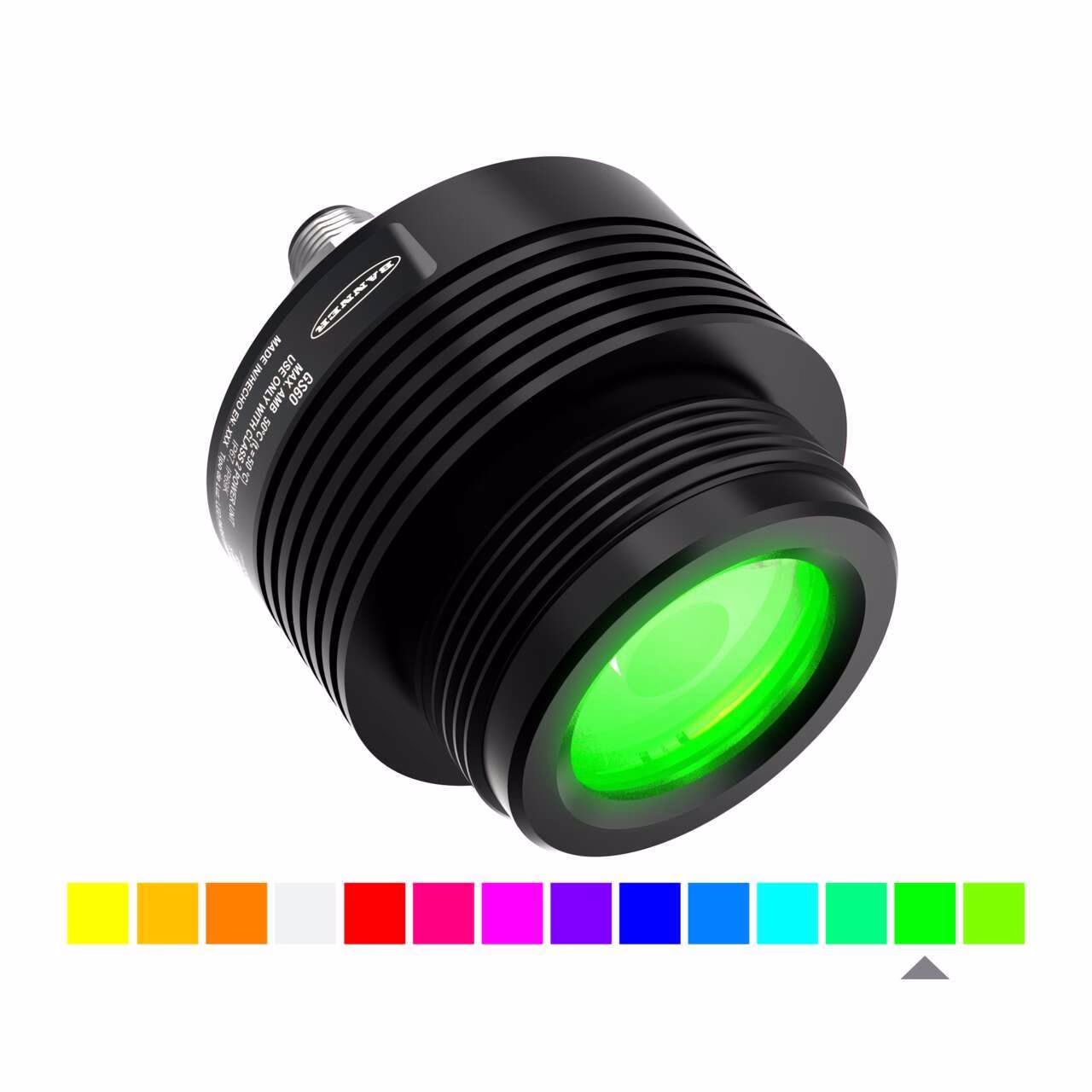

GS60 Pro Multicolor Guide Spotlight – Banner – GS60PRGBWL9Q
GS60 Pro Multicolor Guide Spotlight: 60 mm Spot
12-30 V dc; IP66/67
Color: RGBW; 9 Degree Clear Lens
5-pin M12 Integral QD
| Color Technology | RGB Configurable |
|---|---|
| Connection | Integral QD |
| Dimming Option | Programmable |
| Feature: Audible | No |
| Input Type | Bimodal (PNP/NPN) |
| Lens Focusing Angle/FOV (degrees) | 9.0 |
| Power Over Ethernet (PoE) | No |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Clear |
| Pro-Editor Compatible (Discrete) | Yes |
| Animation Option 1 | Multiple |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Color Option 1 | RGBW |
| EPLAN Original Sent Date | 03/26/2025 |
| EPLAN Status | Published |
| EtherNet/IP | No |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Base Mount – Flat Window |
| Indication | Yes |
| Item Status | RELEASED |
| Light type | Yes |
| Lumens Color 1 | 257.0 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Single Color On – Alternating |
| Non-Illuminated | No |
| Number of colors/segments | 14 |
| Number of Conductors | 5.0 |
| Operating voltage | 12-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 60.0 x 77.0 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP66, IP67 |
| Radio interface | No |
| Receptacle housing material B | Aluminum |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 60 |
| Max Current Color (mA) | 500.0 |
| Storage Temp (C) | -40 to 70 |
Description
GS60 Pro Multicolor Guide Spotlight: 60 mm Spot
12-30 V dc; IP66/67
Color: RGBW; 9 Degree Clear Lens
5-pin M12 Integral QD
