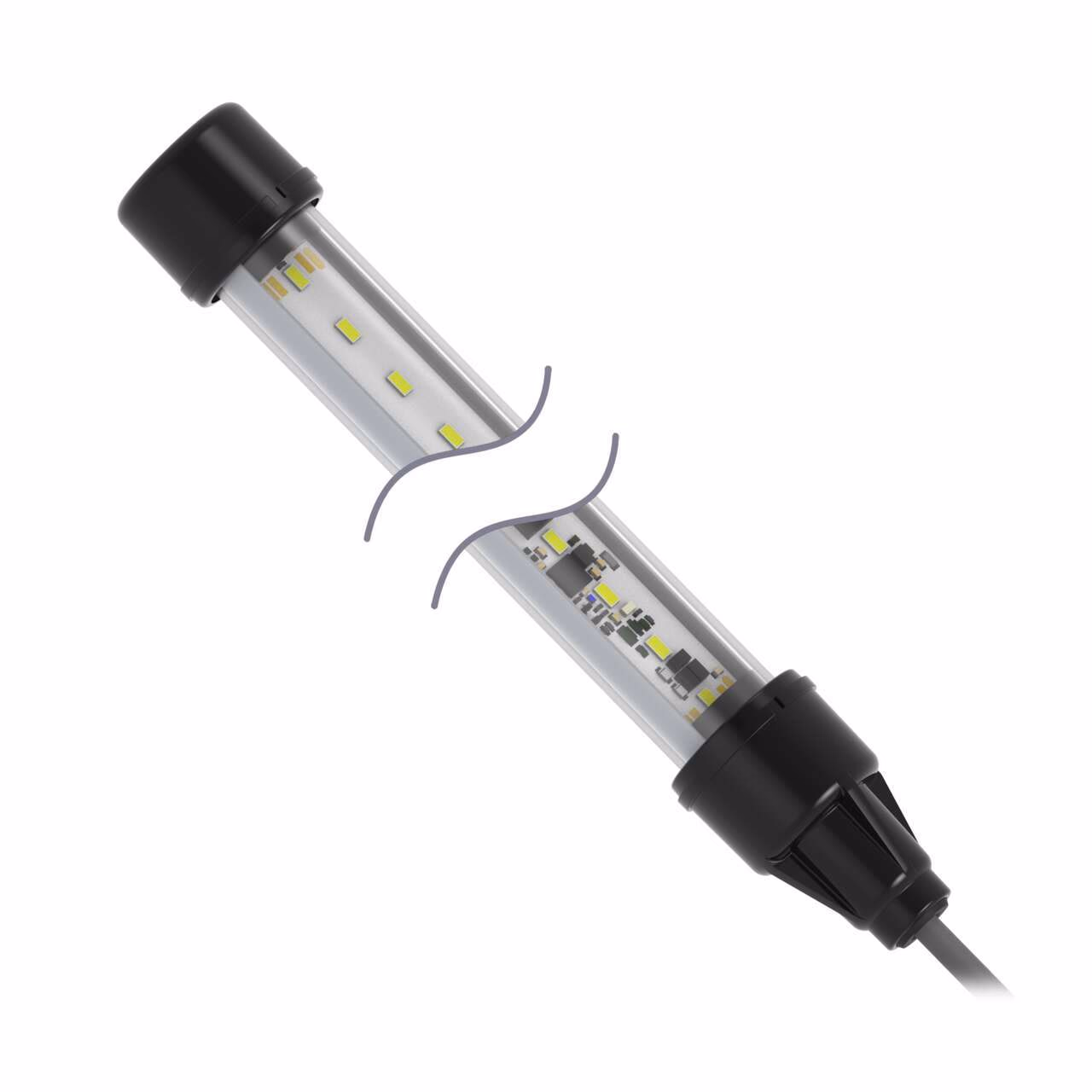

HLS27 Series Bright LED Strip Light for Hazardous Locations – Banner – HLS27DR0570C
HLS27 Hazardous Location Strip Light; Length: 570 mm
Voltage: 12-30 V dc; Environmental Rating: IP66; IP67
Color: Red
2 m (6.5 ft) ITC-ER 3-wire cable
| Color Technology | Standard LED |
|---|---|
| Connection | Cable |
| Dimming Option | High-Low-Off |
| Feature: Audible | No |
| Primary Window Material | Polycarbonate Clear |
| Animation Option 1 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 620 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Red |
| Environmental Rating | IP66; IP67 |
| Eye Shield | No |
| Feature | Chemical Resistant, Hazardous Area |
| Housing Style | Linear Strip |
| Indication | No |
| Item Status | RELEASED |
| Light type | Yes |
| Lumens Color 1 | 260.0 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Mounting | No Thread |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 4.0 |
| Operating voltage | 12-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 38.1 x 652.0 |
| Power Good Output | DC |
| Protection class shaft | IP66, IP67 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Slot width (mm) | 2 |
| Touchscreen | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 60.0 |
| Product Size (mm) | 27 |
| Max Current Color (mA) | 1600.0 |
| Storage Temp (C) | -40 to 70 |
| Illuminated Length (LxWxH mm) | 564.0 |
Description
HLS27 Hazardous Location Strip Light; Length: 570 mm
Voltage: 12-30 V dc; Environmental Rating: IP66; IP67
Color: Red
2 m (6.5 ft) ITC-ER 3-wire cable
