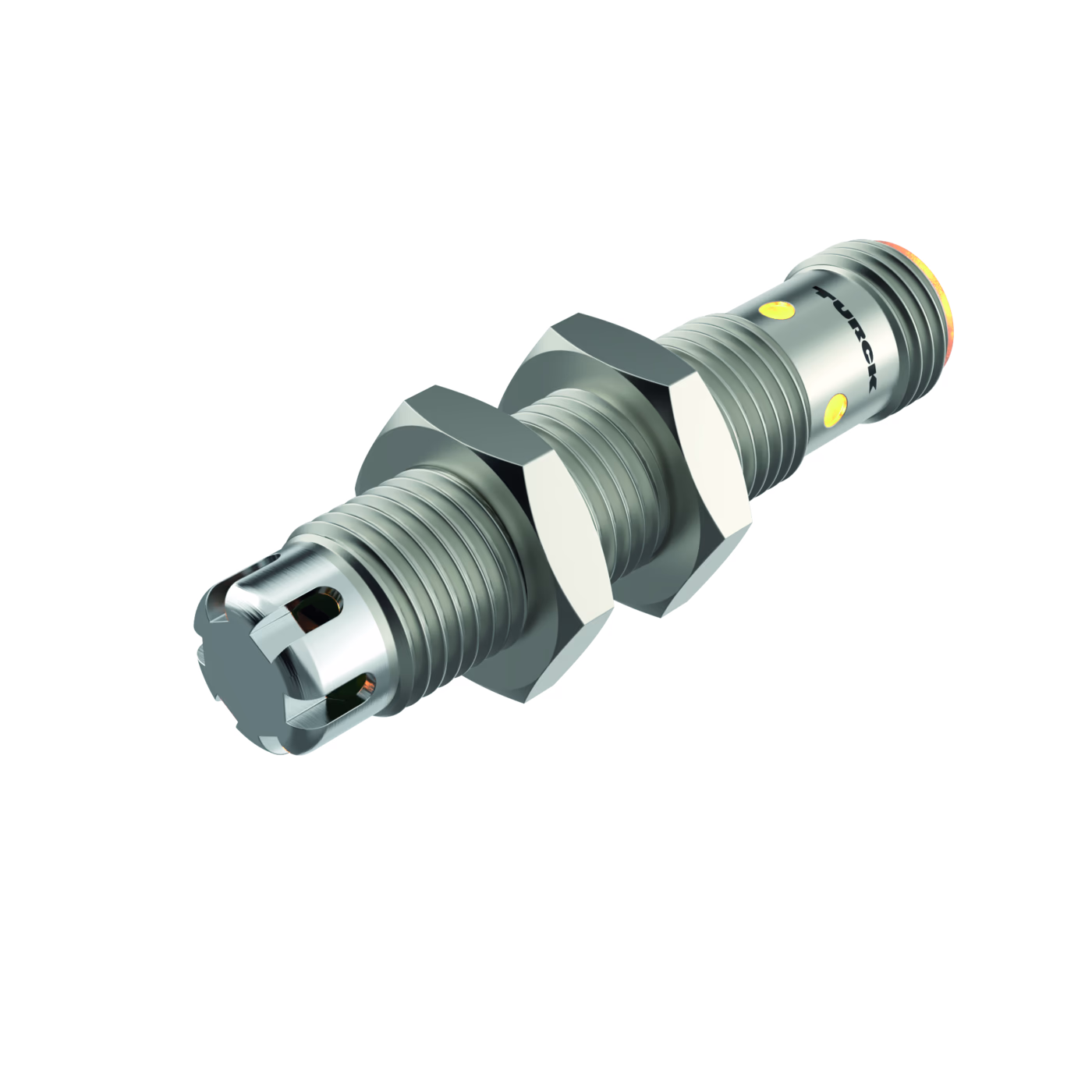

Humidity and Temperature Sensor CMTH-M12-IOL6X2-H1141
Humidity and Temperature Sensor
| Ambient temperature max. (°C) | 100 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Communication protocol | IO-Link |
| Connector type | M12 × 1 |
| Design | Cylinder, threaded |
| Detection type | contactless |
| Dimensions | 12 mm x 57 mm |
| Electrical output | Connector |
| Function | Temperature/humidity sensor |
| Housing material | Metal |
| Housing quality | CuZn |
| Measuring range | -40…100 °C |
| Operating voltage | DC |
| Output function | IO-Link, SIO Mode |
| Protection class | IP67 |
| Setting option | IO-Link |
| Switching element function | Programmable |
