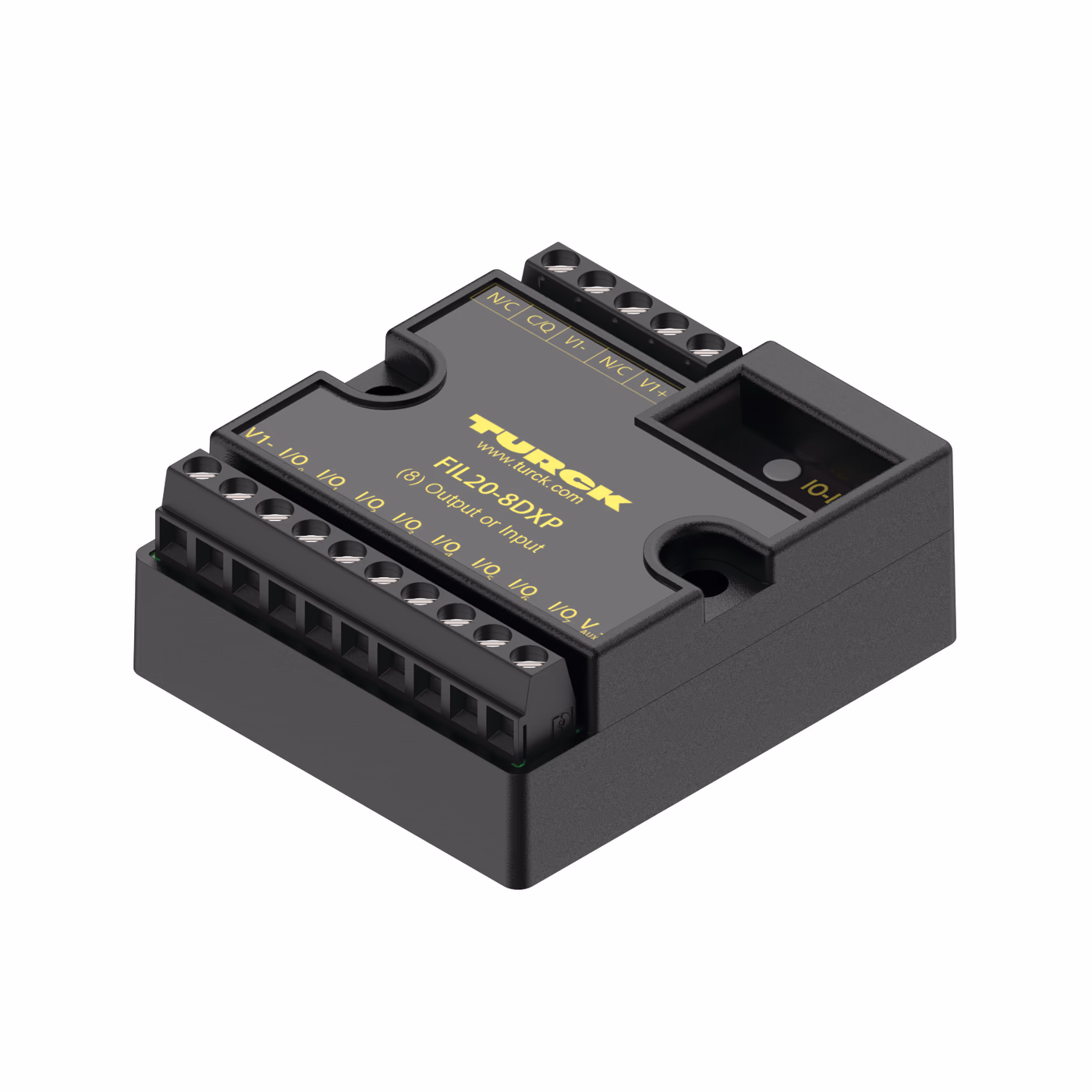

I/O Hub for Connection of Digital Signals to IO-Link Master FIL20-8DXP
I/O Hub for Connection of Digital Signals to IO-Link Master
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Connection technology signal | Screw terminal |
| Device type | Compact station, I/O hub, I/O Module |

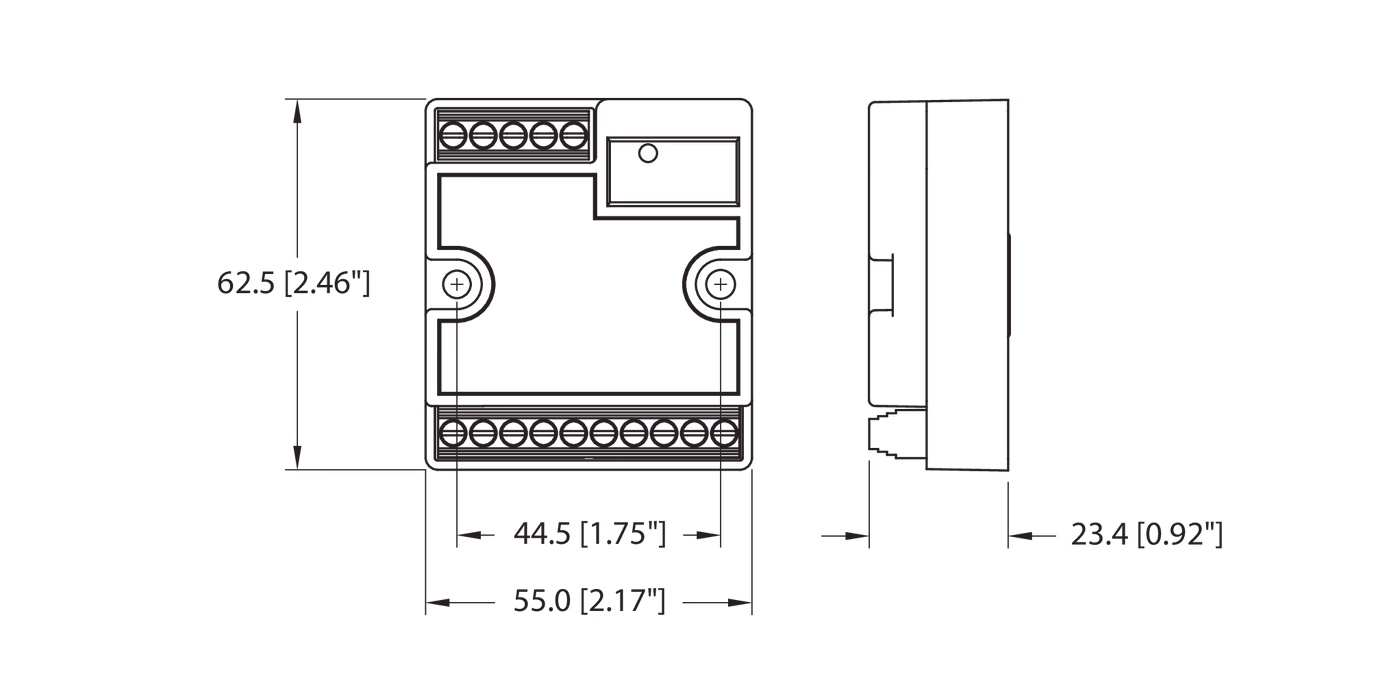

| Dimensions | 62.48 mm x 55 mm x 23.4 mm |
| Fieldbus connection technology | Screw terminals |
| Network protocol | IO-Link |
| Protection class | IP20 |
| Signal type | Digital input, Digital output |
| Voltage (V) | Screw terminals |
