I/O Hub for Connection of Digital Signals to IO-Link Master TBIL-M1-16DXP-B
I/O Hub for Connection of Digital Signals to IO-Link Master
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Approvals | ATEX Zone 2/22, CCC, cULus, IECEx |
| Connection technology signal | M12 |
| Device type | Compact station, I/O hub, I/O Module |

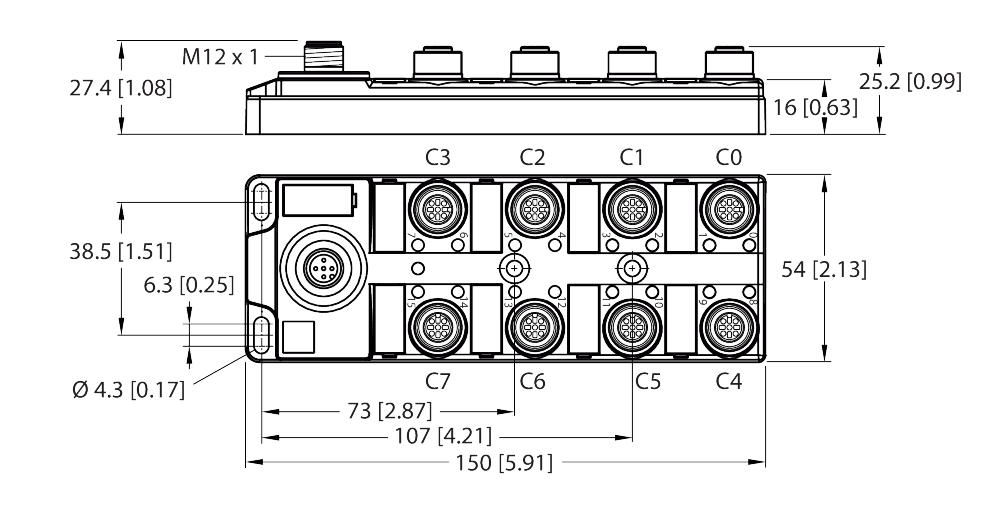

| Dimensions | 150 mm x 54 mm x 27.4 mm |
| Installation area | zone 2, zone 22 |
| Network protocol | IO-Link |
| Protection class | IP65 |
| Signal type | Digital input, Digital input/output, Digital output |
| Voltage (V) | M12 |
