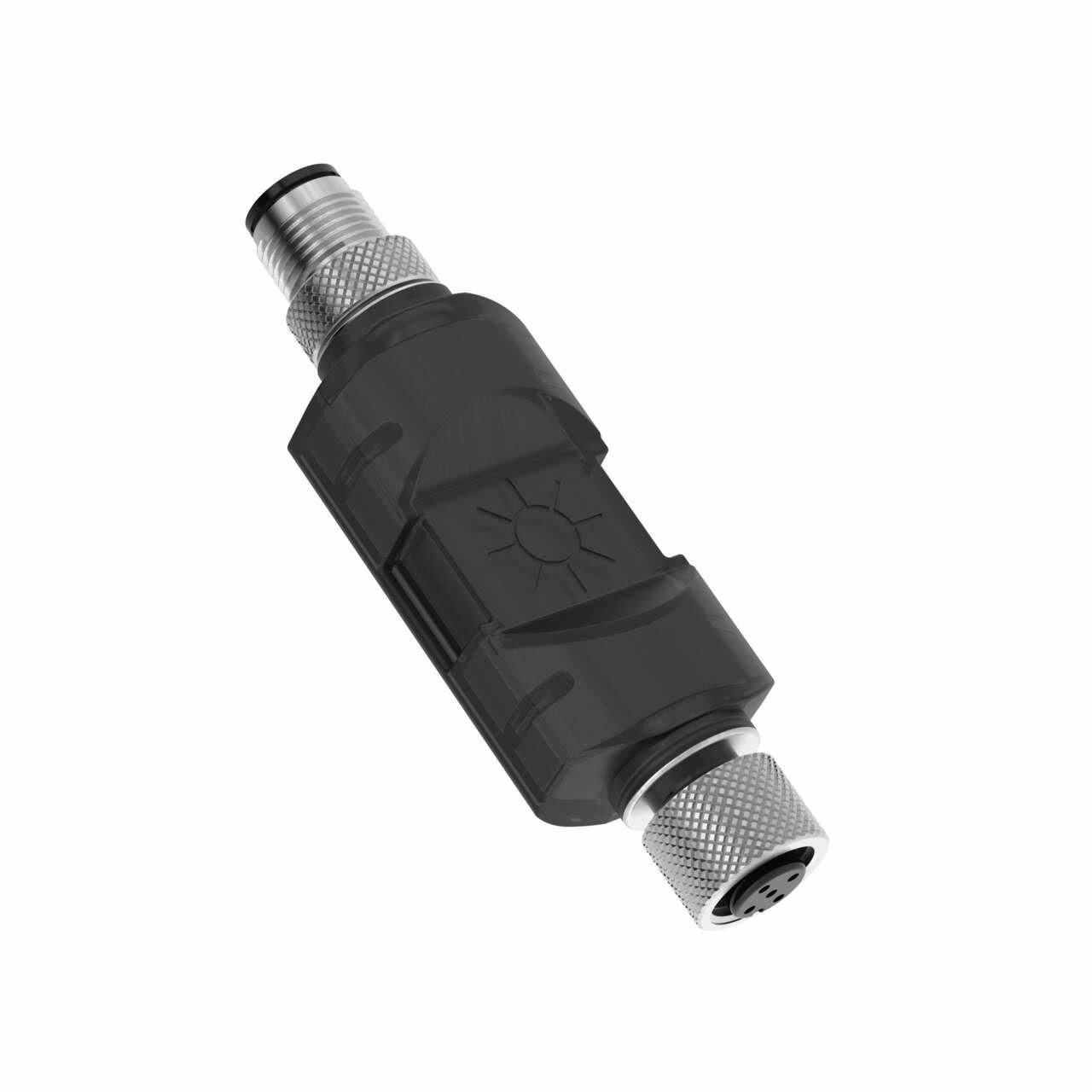

Illuminated Switches – Banner – LC25T-AL2RGQ
LC25T Light Controller; 2-Color Touch Sensor
Voltage: 10-30 V dc; 4 A; Environmental Rating: IP66, IP67
Colors: Red Green; ON/OFF
4-pin M12 Male-Female Integral QDs
| Color Option 2 | Green |
|---|---|
| Color Technology | Standard LED |
| Connection | Integral QD |
| Feature: Audible | No |
| Illumination Switch Function | I=Color 1; O=OFF; II=Color 2 |
| Input Type | PNP |
| Primary Housing Color | Black |
| Secondary Material | Metal |
| Actuation | Yes |
| Button Operation | Latching |
| Color Option 1 | Red |
| Environmental Rating | IP66; IP67; IP68 |
| EPLAN Original Sent Date | 09/22/2023 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Inline |
| Indication | Yes |
| Item Status | RELEASED |
| Light type | No |
| Mounting | No Thread |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 2 |
| Number of Conductors | 4.0 |
| Operating mode | Capacitive Touch |
| Operating voltage | 12-30 V dc |
| Operation | Normally Open |
| Output type | PNP |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 84.8 x 25 x 16.8 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP66, IP67, IP68 |
| Radio interface | No |
| Receptacle housing material B | PVC |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 60.0 |
| Product Size (mm) | 25 |
| Max Current Color (mA) | 16.0 |
| Storage Temp (C) | -40 to 70 |
Description
LC25T Light Controller; 2-Color Touch Sensor
Voltage: 10-30 V dc; 4 A; Environmental Rating: IP66, IP67
Colors: Red Green; ON/OFF
4-pin M12 Male-Female Integral QDs
