Inductive Angle Sensor RI360P1-DSU35-2UP6X4-H1151
Inductive Angle Sensor
| Ambient temperature max. (°C) | 75 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Connector type | M12 × 1 |

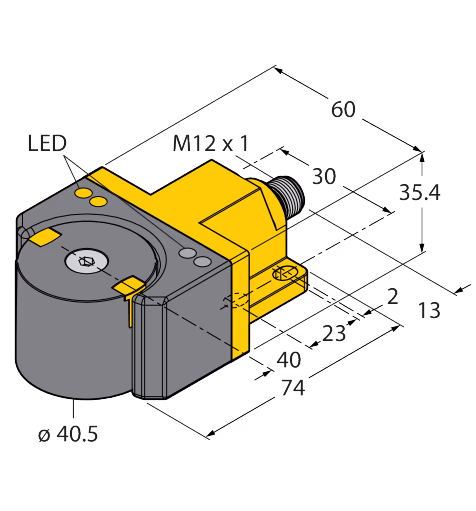

| Construction size | 74 x 60 x 35.4 mm |
| Design | Dual sensor for rotary actuators |
| Dimensions | 74 mm x 60 mm x 35.4 mm |
| Electrical output | Connector |
| Encoder line | Premium-Line |
| Flange type | Flange without mounting element |
| Housing material | Plastic |
| Housing quality | PP-GF30 |
| Measuring principle | Inductive |
| Measuring range | 0…360° |
| Mounting conditions | Non-flush |
| Operating voltage | DC |
| Output function | 2 × PNP |
| Output type | Absolute singleturn |
| Protection class | IP68 |
| Resolution | 0.09° |
| Switching element function | NO/NC |
| Technology | Contactless |
