Inductive Linear Position Sensor LI25P1-QR14-LIU5X2
Inductive Linear Position Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Cable color | Gray |
| Cable length (m) | 2 |
| Design | Profile |

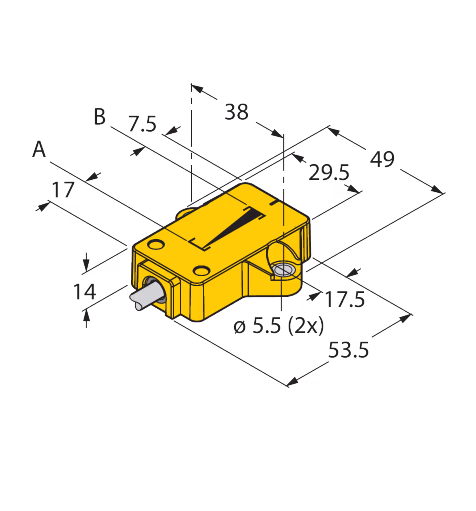

| Dimensions | 53.5 mm x 49 mm x 14 mm |
| Electrical output | Cable |
| Housing material | Plastic |
| Housing quality | PBT-GF30-V0 |
| Measuring principle | Inductive |
| Measuring range | 25.0 mm |
| Measuring range (mm) | 25 |
| Operating voltage | DC |
| Output function | Analog output |
| Protection class | IP68 |
| Resolution | 0.006 mm |
