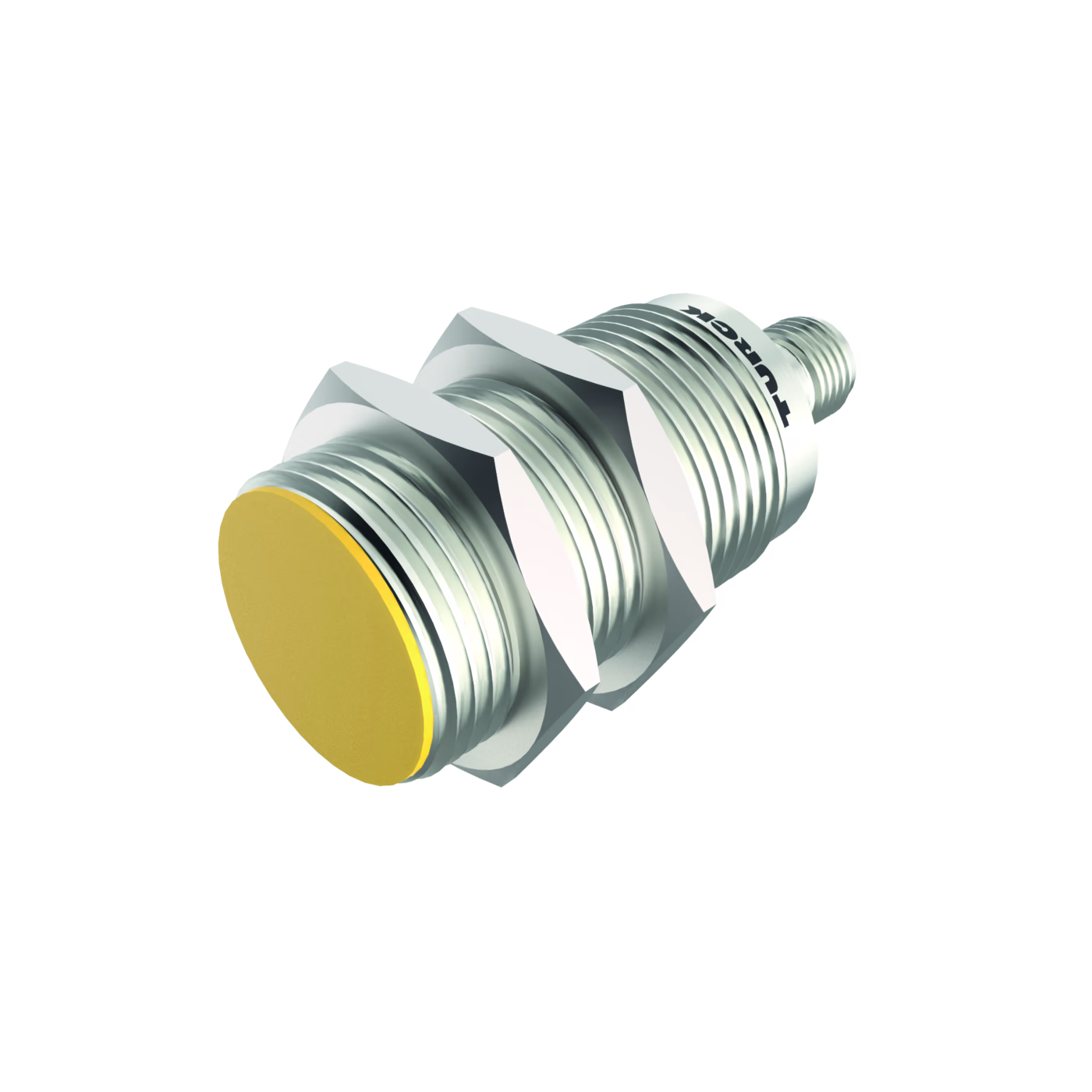

Inductive Safety Sensor BI12-M30-2APS8X2-H1141
Inductive Safety Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Cascadable | No |
| Category acc. to ISO 13849-1:2008 | 2 |
| Connector type | M12 × 1 |
| Design | Threaded barrel |

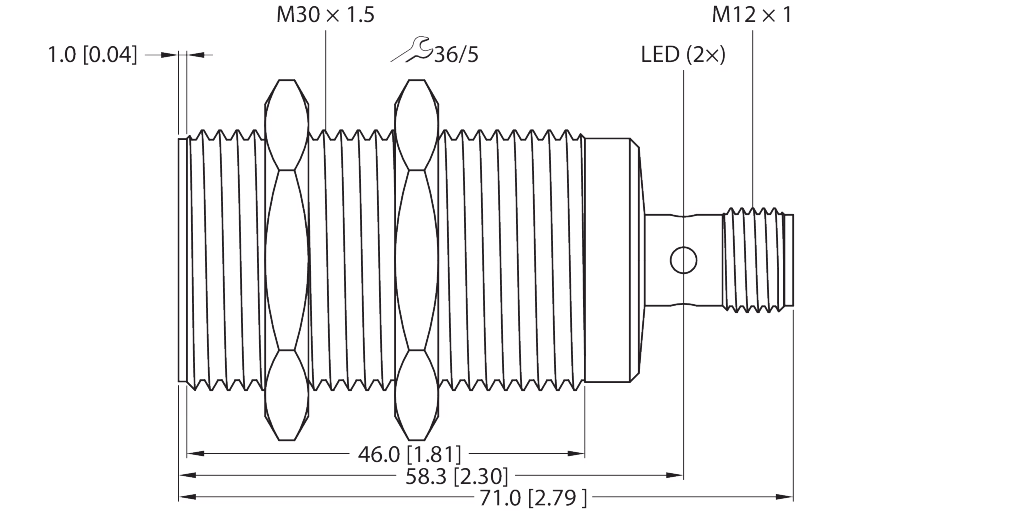

| Dimensions | 30 mm x 71 mm |
| Electrical output | Connector |
| Function | Inductive safety switch |
| Housing material | Metal |
| Housing quality | CuZn |
| Mounting conditions | Flush |
| Operating voltage | DC |
| Output function | PNP |
| PL acc. to EN ISO 13849-1 | Level d |
| Protection class | IP67 |
| Quality active face | PA |
| Rated switching distance (mm) | 12 |
| SIL acc. to IEC 61508 | 2 |
| Switching element function | 2 x OSSD, NO contact |
| Switching frequency (kHz) | 0.1 |
| Coding level/tamper protection | Uncoded |
