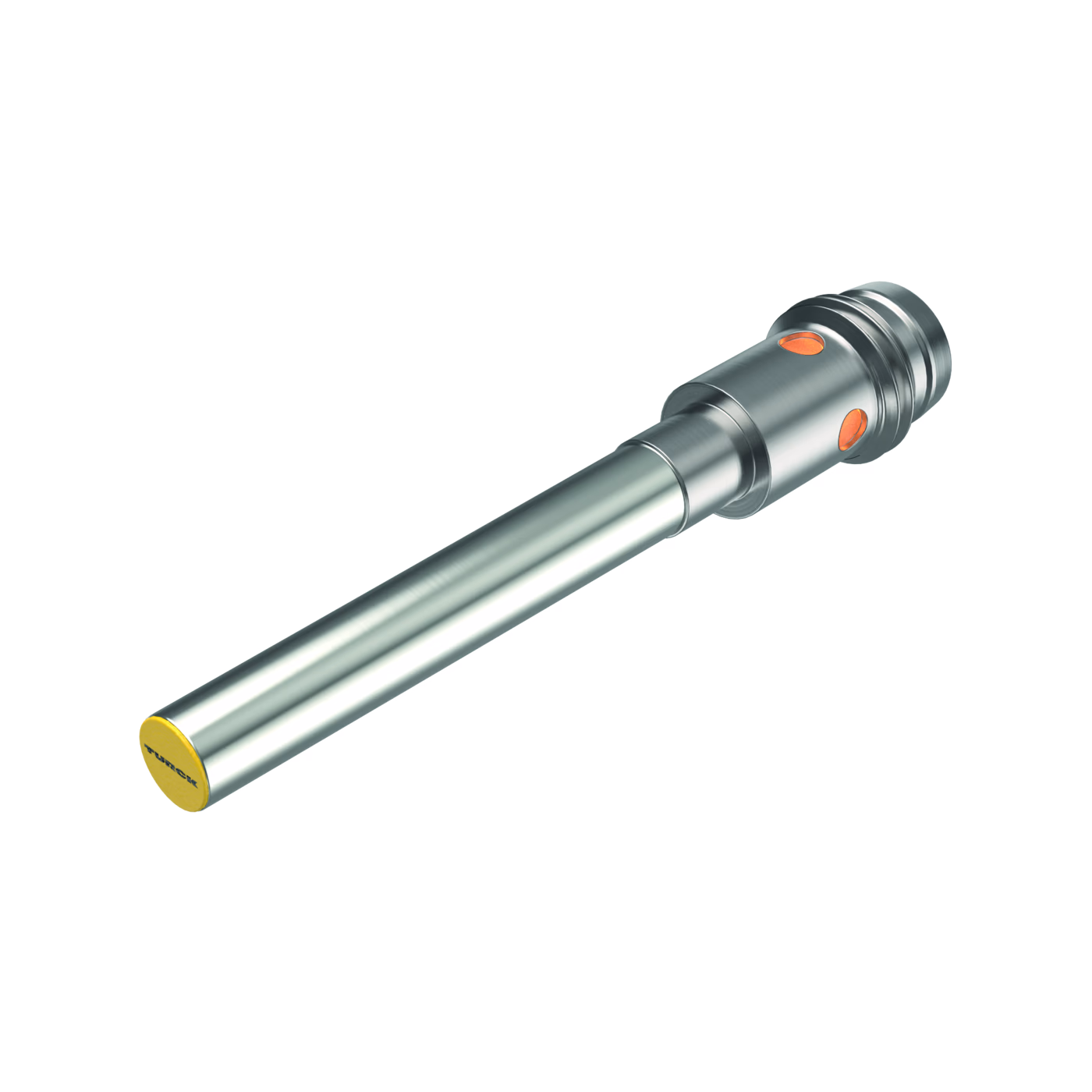

Inductive Sensor BI1U-EH04-AP6X-V1331
Inductive Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Connector type | M8 x 1 |
| Design | Smooth barrel |
| Dimensions | 4 mm x 42.7 mm |
| Electrical output | Connector |
| Housing material | Stainless steel |
| Housing quality | 1.4427 SO |
| Mounting conditions | Flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP67 |
| Quality active face | PA12 |
| Rated switching distance (mm) | 1 |
| Special features | Factor 1, Resistant to magnetic fields, uprox3 |
| Switching element function | NO contact |
| Switching frequency (kHz) | 2 |
