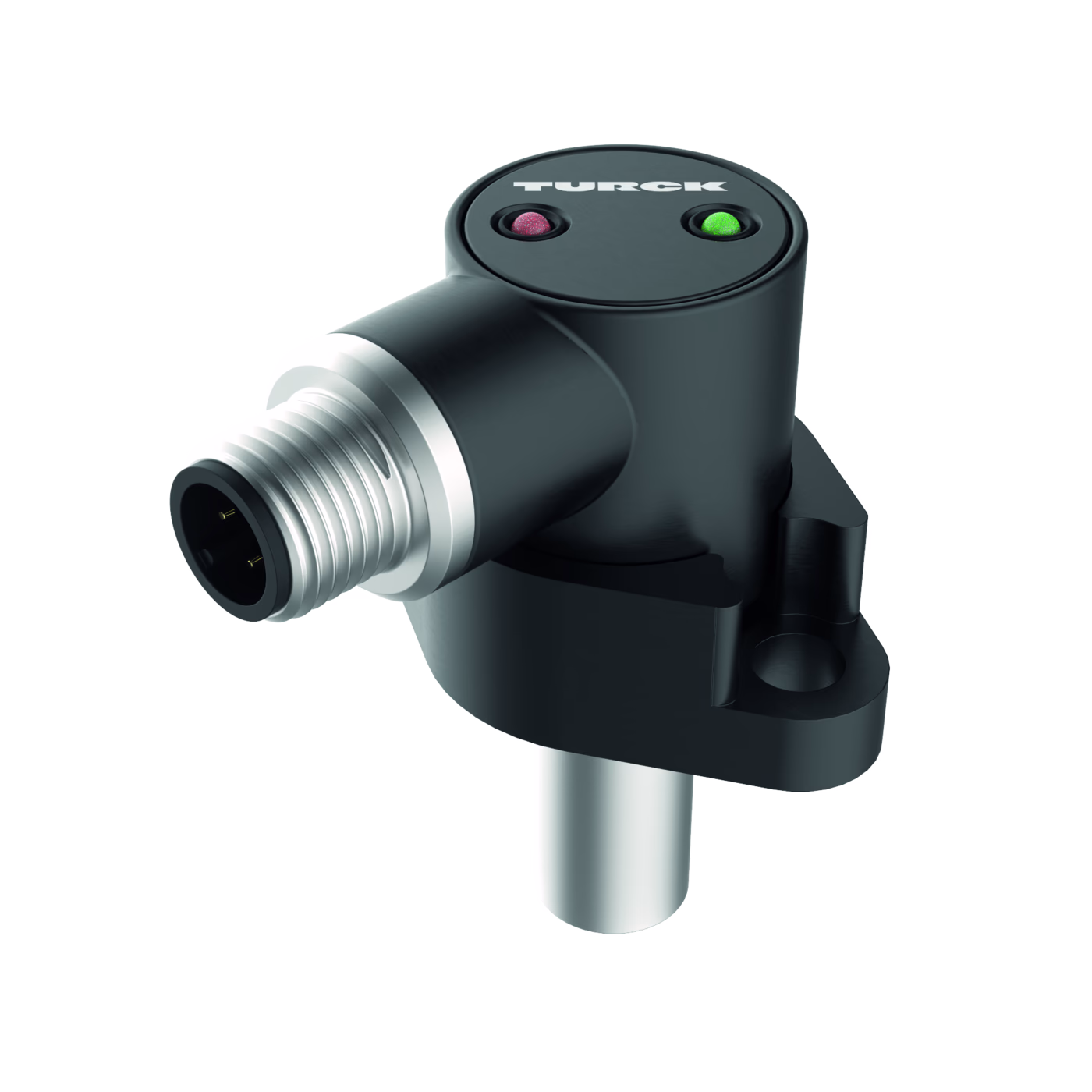

Inductive Sensor BI2-CRS260-AP4X2-H1141/S34
Inductive Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Connector type | M12 × 1 |
| Design | Smooth barrel |
| Dimensions | 12.7 mm |
| Electrical output | Connector |
| Housing material | Metal |
| Housing quality | 1.4305 (AISI 303) |
| Mounting conditions | Flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP67 |
| Quality active face | PA12-GF30 |
| Rated switching distance (mm) | 2 |
| Special features | Pressure resistant |
| Switching element function | NO contact |
| Switching frequency (kHz) | 0.03 |
