Inductive Sensor BI20R-Q14-LU-H1141
Inductive Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Connector type | M12 × 1 |
| Design | Ring sensor |

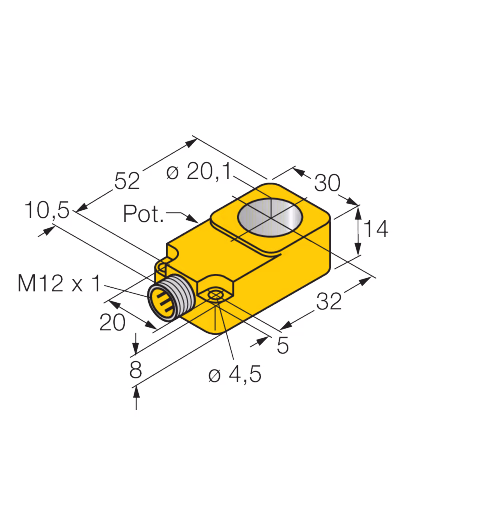

| Dimensions | 62.5 mm x 30 mm x 14 mm |
| Electrical output | Connector |
| Housing material | Plastic |
| Housing quality | PBT-GF30-V0 |
| Operating voltage | DC |
| Output function | Analog output |
| Protection class | IP67 |
| Inside ring diameter D (mm) | 20.1 |
