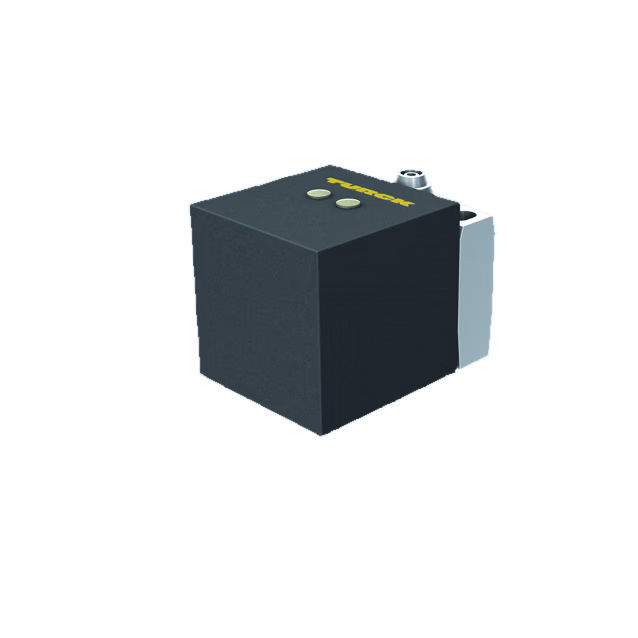

Inductive Sensor BI20U-CA40-AP6X2-H1141
Inductive Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | |
| Connector type | M12 × 1 |
| Construction size | 65 x 40 x 40 mm |
| Design | Rectangular |
| Dimensions | 65 mm x 40 mm x 40 mm |
| Electrical output | Connector |
| Housing material | Metal |
| Housing quality | GD-AlSi 12 |
| Mounting conditions | Flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP67 |
| Quality active face | PA6-GF30 |
| Rated switching distance (mm) | 20 |
| Special features | Factor 1, Resistant to magnetic fields, uprox+ |
| Switching element function | NO contact |
| Switching frequency (kHz) | 0.25 |
