Inductive Sensor BI2U-EH6.5-AP6X
Inductive Sensor
| Ambient temperature max. (°C) | 85 |
|---|---|
| Ambient temperature min. (°C) | -30 |
| Cable length (m) | 2 |
| Design | Smooth barrel |

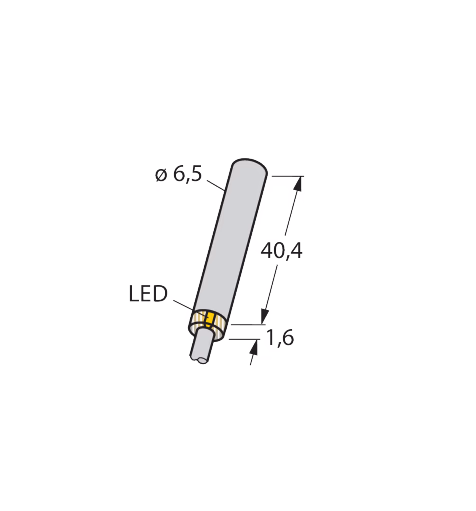

| Dimensions | 6.5 mm x 41.6 mm |
| Electrical output | Cable |
| Housing material | Stainless steel |
| Housing quality | 1.4427 SO |
| Mounting conditions | Flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP68 |
| Quality active face | PA12-GF20 |
| Rated switching distance (mm) | 2 |
| Special features | Factor 1, Resistant to magnetic fields, uprox+ |
| Switching element function | NO contact |
| Switching frequency (kHz) | 2 |
