Inductive Sensor BI2U-G12-ADZ32X-B3131
Inductive Sensor
| Ambient temperature max. (°C) | 85 |
|---|---|
| Ambient temperature min. (°C) | -30 |
| Connector type | 1/2″ |
| Design | Threaded barrel |

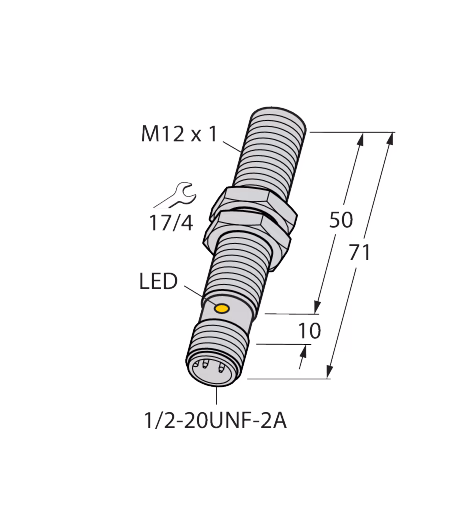

| Dimensions | 12 mm x 71 mm |
| Electrical output | Connector |
| Housing material | Metal |
| Housing quality | CuZn |
| Mounting conditions | Flush |
| Operating voltage | AC/DC |
| Output function | 2-wire |
| Protection class | IP68 |
| Quality active face | PBT-GF30 |
| Rated switching distance (mm) | 2 |
| Special features | Factor 1, Resistant to magnetic fields, uprox+ |
| Switching element function | NO contact |
| Switching frequency (kHz) | 0.01 |
