Inductive Sensor BI4U-EM12WD-VP6X-H1141/3GD
Inductive Sensor
| Ambient temperature max. (°C) | 100 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Connector type | M12 × 1 |
| Construction size | M12 x 1 |
| Design | Threaded barrel |

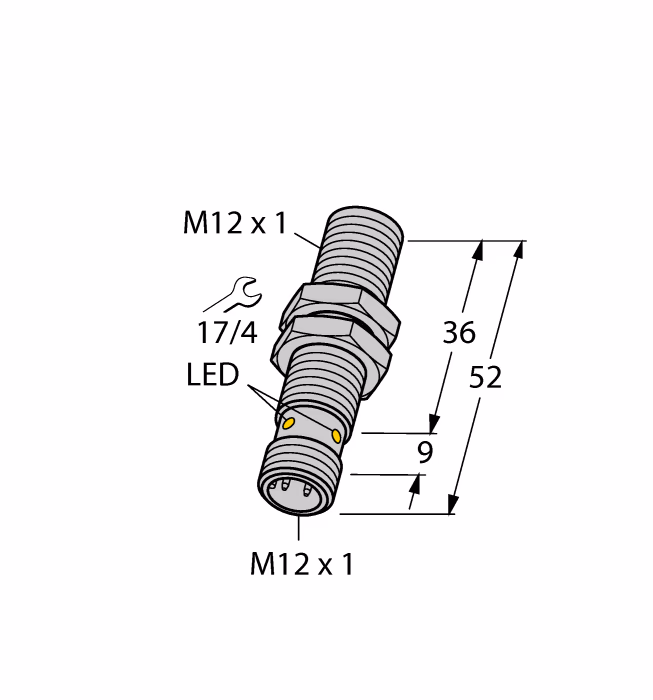

| Dimensions | 12 mm x 52 mm |
| Electrical output | Connector |
| Housing material | Stainless steel |
| Housing quality | 1.4404 (AISI 316L) |
| Mounting conditions | Flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP68 |
| Quality active face | LCP |
| Rated switching distance (mm) | 4 |
| Special features | Factor 1, Pressure resistant, Resistant to magnetic fields, Sn +, uprox+, Wash down |
| Switching element function | Complementary contact |
| Switching frequency (kHz) | 3 |
