Inductive Sensor BI5-EM18D-VP6X/S120
Inductive Sensor
| Ambient temperature max. (°C) | 120 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Cable length (m) | 2 |
| Design | Threaded barrel |

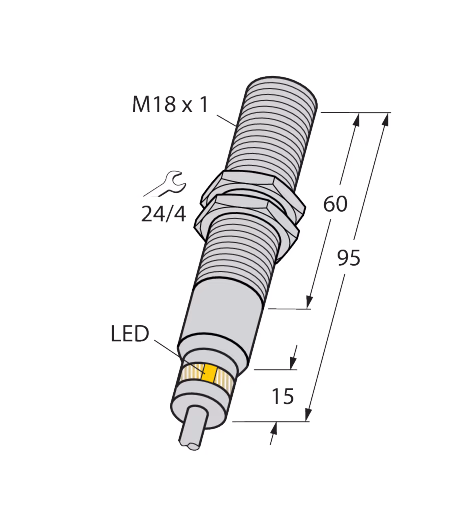

| Dimensions | 18 mm x 95 mm |
| Electrical output | Cable |
| Housing material | Stainless steel |
| Housing quality | 1.4571 (AISI 316Ti) |
| Mounting conditions | Flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP68 |
| Quality active face | PTFE |
| Rated switching distance (mm) | 5 |
| Special features | Wash down |
| Switching element function | Complementary contact |
| Switching frequency (kHz) | 0.1 |
