Inductive Sensor BI5-M18-AZ3X/S120
Inductive Sensor
| Ambient temperature max. (°C) | 120 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Cable length (m) | 2 |
| Design | Threaded barrel |

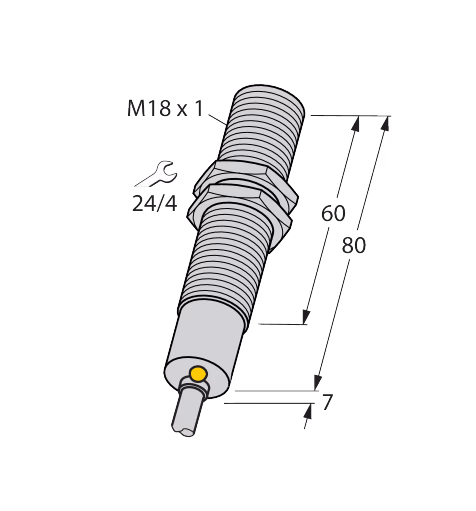

| Dimensions | 18 mm x 87 mm |
| Electrical output | Cable |
| Housing material | Metal |
| Housing quality | CuZn |
| Mounting conditions | Flush |
| Operating voltage | AC |
| Output function | 2-wire |
| Protection class | IP67 |
| Quality active face | PA12-GF30 |
| Rated switching distance (mm) | 5 |
| Switching element function | NO contact |
| Switching frequency (kHz) | 0.02 |
