Inductive Sensor BI5U-P18SK-AP6X
Inductive Sensor
| Ambient temperature max. (°C) | 85 |
|---|---|
| Ambient temperature min. (°C) | -30 |
| Construction size | M18 x 1 |
| Design | Threaded barrel |

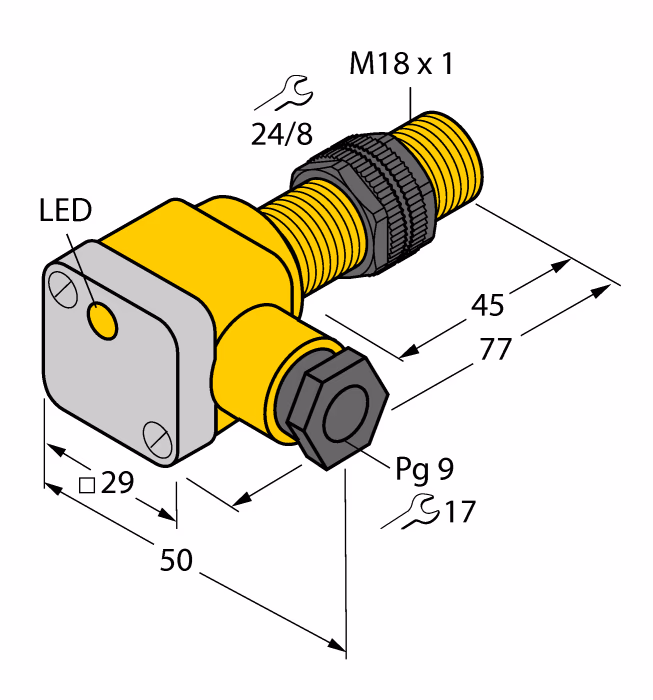

| Dimensions | 18 mm x 77 mm |
| Electrical output | Terminal chamber |
| Housing material | Plastic |
| Housing quality | PA12-GF30 |
| Mounting conditions | Flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP68 |
| Quality active face | PA12-GF30 |
| Rated switching distance (mm) | 5 |
| Special features | Factor 1, Resistant to magnetic fields, uprox+ |
| Switching element function | NO contact |
| Switching frequency (kHz) | 3 |
