Inductive Sensor BI8U-Q10-AP6X2
Inductive Sensor
| Ambient temperature max. (°C) | 85 |
|---|---|
| Ambient temperature min. (°C) | -30 |
| Cable length (m) | 2 |

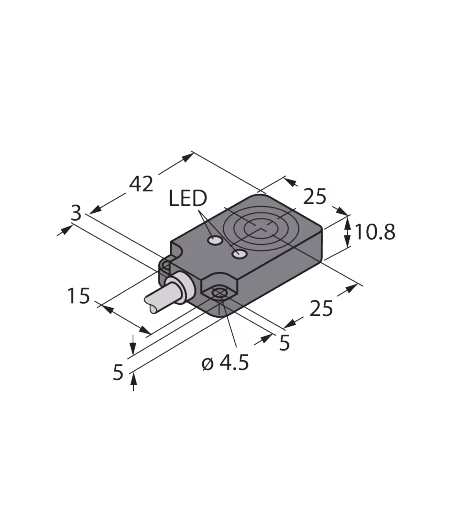

| Construction size | 42 x 25 x 10.8 mm |
| Design | Rectangular |
| Dimensions | 42 mm x 25 mm x 10.8 mm |
| Electrical output | Cable |
| Housing material | Plastic |
| Housing quality | PBT-GF30-V0 |
| Mounting conditions | Flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP67 |
| Quality active face | PBT-GF30-V0 |
| Rated switching distance (mm) | 8 |
| Special features | Factor 1, Resistant to magnetic fields, uprox+ |
| Switching element function | NO contact |
| Switching frequency (kHz) | 0.25 |
