Inductive Sensor BID1.5-G120KK-AP6-H1141
Inductive Sensor
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Connector type | M12 × 1 |
| Construction size | M12 x 1 |
| Design | Threaded barrel |

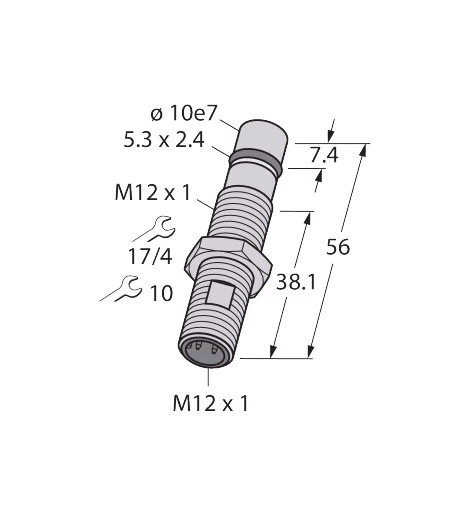

| Dimensions | 12 mm x 56 mm |
| Electrical output | Connector |
| Housing material | Stainless steel |
| Housing quality | 1.4305 (AISI 303) |
| Mounting conditions | Flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP68 |
| Quality active face | ZrO2 |
| Rated switching distance (mm) | 1.5 |
| Special features | Pressure resistant |
| Switching element function | NO contact |
| Switching frequency (kHz) | 0.6 |
