Inductive Sensor DTBI10U-M30-AP4X2
Inductive Sensor
| Ambient temperature max. (°C) | 85 |
|---|---|
| Ambient temperature min. (°C) | -30 |
| Cable length (m) | 2 |
| Design | Threaded barrel |

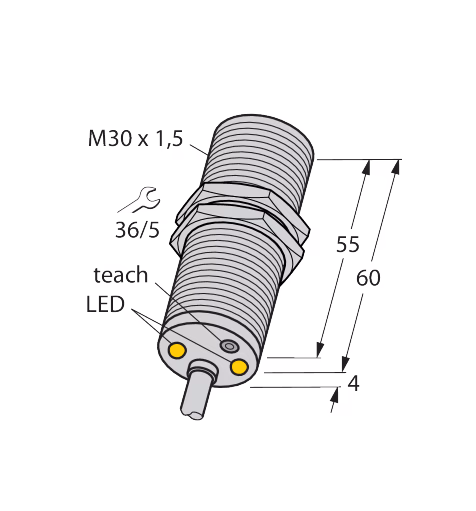

| Dimensions | 30 mm x 64 mm |
| Electrical output | Cable |
| Housing material | Metal |
| Housing quality | CuZn |
| Mounting conditions | Flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP67 |
| Quality active face | PBT |
| Rated switching distance (mm) | 10 |
| Special features | Rotation speed monitoring |
| Switching element function | NO contact |
