Inductive Sensor NI10U-M12-AP6X-V1131
Inductive Sensor
| Ambient temperature max. (°C) | 85 |
|---|---|
| Ambient temperature min. (°C) | -30 |
| Connector type | M8 x 1 |
| Design | Threaded barrel |

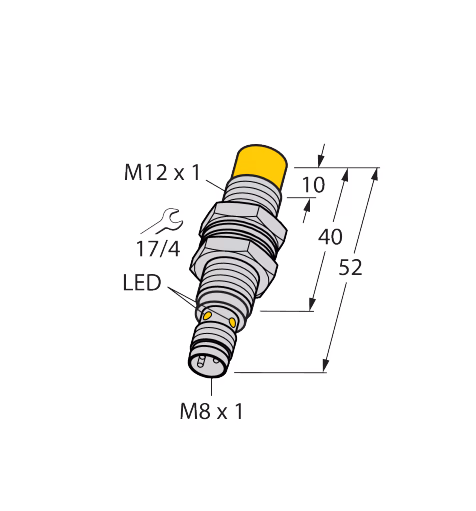

| Dimensions | 12 mm x 52 mm |
| Electrical output | Connector |
| Housing material | Metal |
| Housing quality | CuZn |
| Mounting conditions | Non-flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP68 |
| Quality active face | LCP |
| Rated switching distance (mm) | 10 |
| Special features | Factor 1, Resistant to magnetic fields, uprox+ |
| Switching element function | NO contact |
| Switching frequency (kHz) | 1 |
