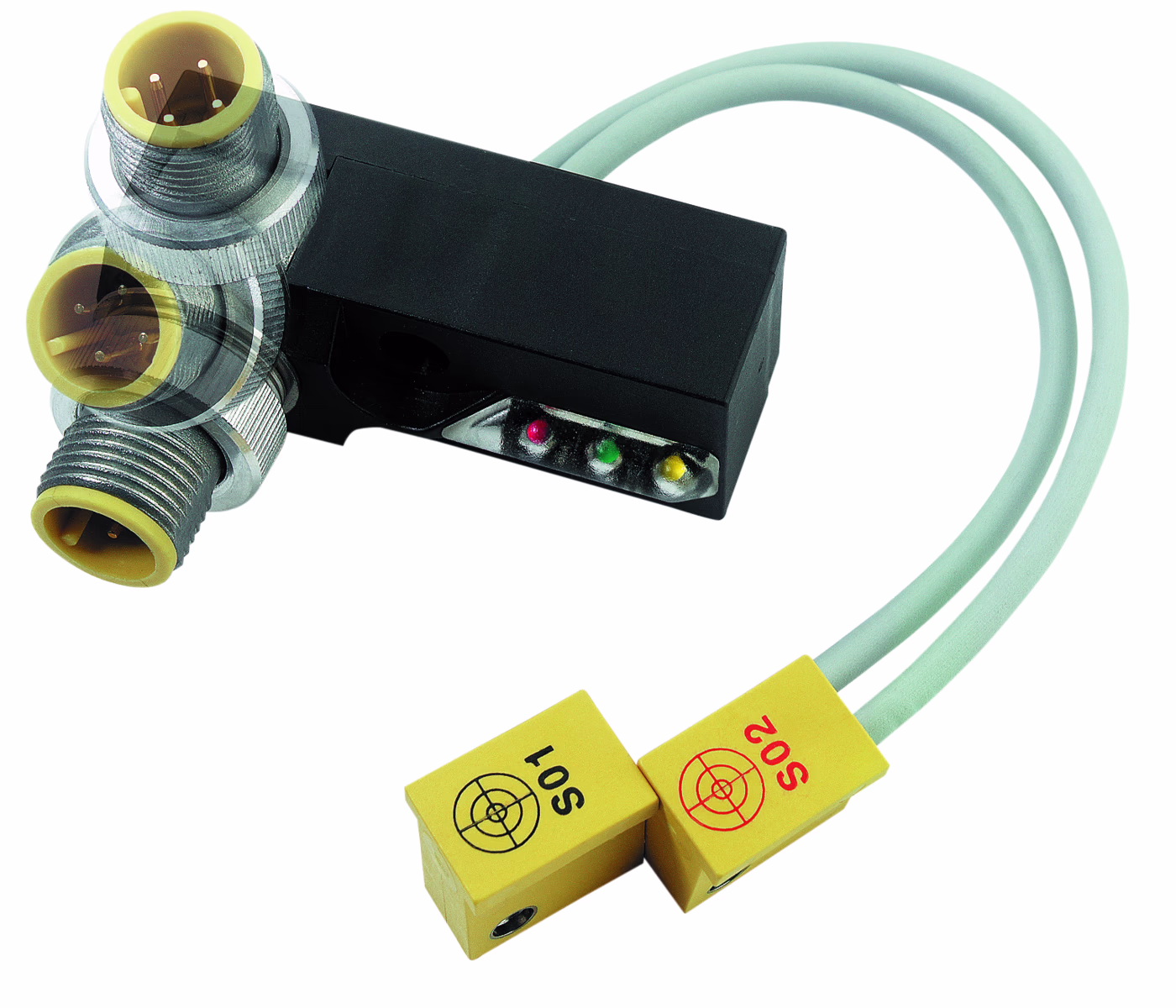

Inductive Sensor NI2-ISI-0.055-BDS-2AP6X3-H1141/S34
Inductive Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Cable color | Gray |
| Cable length (m) | 0.055 |
| Connector type | M12 × 1 |
| Design | Monitoring Kit for Spanners |
| Dimensions | 47 mm x 18 mm x 18 mm |
| Electrical output | Connector |
| Housing material | Plastic |
| Housing quality | Trogamit |
| Mounting conditions | Non-flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP67 |
| Quality active face | PA12-GF20 |
| Rated switching distance (mm) | 2 |
| Special features | Resistant to magnetic fields |
| Switching element function | NO contact |
| Switching frequency (kHz) | 0.03 |
