Inductive Sensor NI20U-G30-ADZ30X2-B1131
Inductive Sensor
| Ambient temperature max. (°C) | 85 |
|---|---|
| Ambient temperature min. (°C) | -30 |
| Connector type | 7/8″ |
| Design | Threaded barrel |

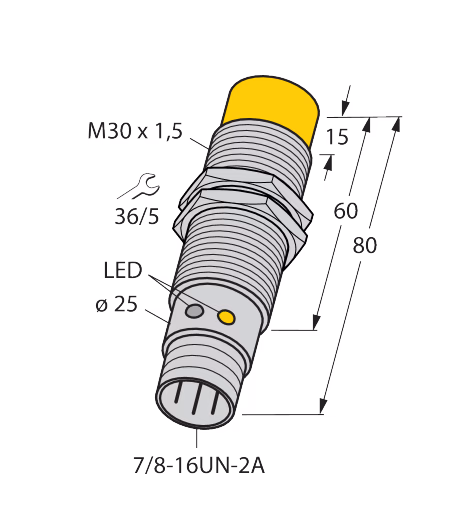

| Dimensions | 30 mm x 80 mm |
| Electrical output | Connector |
| Housing material | Metal |
| Housing quality | CuZn |
| Mounting conditions | Non-flush |
| Operating voltage | AC/DC |
| Output function | 2-wire |
| Protection class | IP68 |
| Quality active face | PBT |
| Rated switching distance (mm) | 20 |
| Special features | Factor 1, Resistant to magnetic fields, uprox+ |
| Switching element function | NO contact |
| Switching frequency (kHz) | 0.01 |
