Inductive Sensor NI25-CP40-LIU
Inductive Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Design | Rectangular |

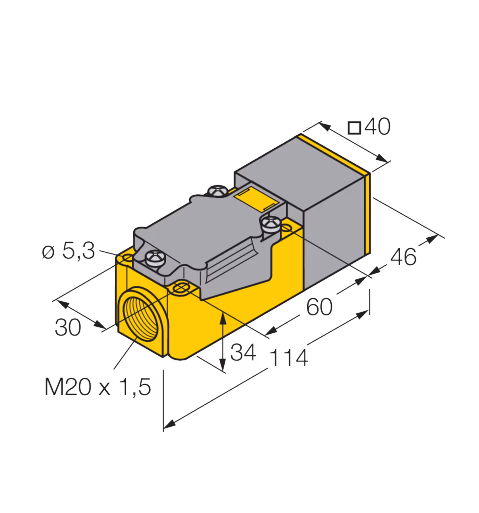

| Dimensions | 114 mm x 40 mm x 40 mm |
| Electrical output | Terminal chamber |
| Housing material | Plastic |
| Housing quality | PBT-GF30-V0 |
| Measuring range | 5…25 mm |
| Measuring range (mm) | 5 |
| Mounting conditions | Non-flush |
| Operating voltage | DC |
| Output function | Analog output |
| Protection class | IP67 |
| Quality active face | PBT-GF30-V0 |
