Inductive Sensor NI3-EH6.5-AP6X-V1131
Inductive Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Connector type | M8 x 1 |
| Design | Smooth barrel |

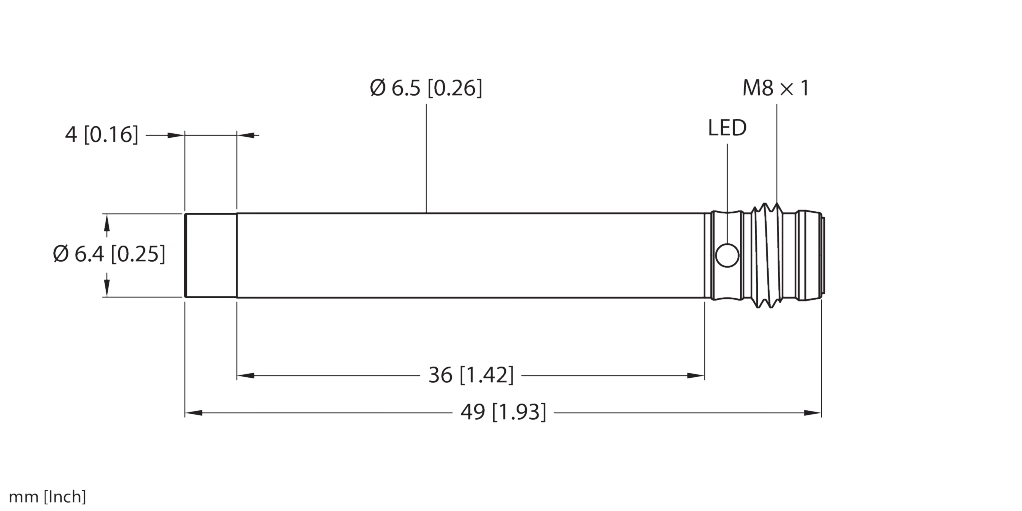

| Dimensions | 6.5 mm x 49 mm |
| Electrical output | Connector |
| Housing material | Stainless steel |
| Housing quality | 1.4305 (AISI 303) |
| Mounting conditions | Non-flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP67 |
| Quality active face | PBT |
| Rated switching distance (mm) | 3 |
| Switching element function | NO contact |
| Switching frequency (kHz) | 3 |
