Inductive Sensor NI30-Q130-ADZ30X2-B1131
Inductive Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Connector type | 7/8″ |

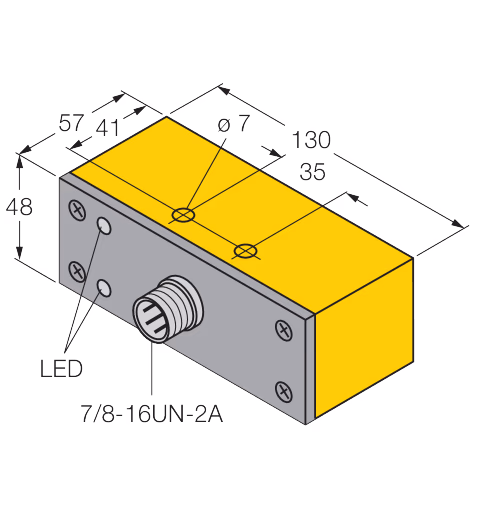

| Construction size | 130 x 57 x 48 mm |
| Design | Rectangular |
| Dimensions | 130 mm x 57 mm x 48 mm |
| Electrical output | Connector |
| Housing material | Plastic |
| Housing quality | PBT |
| Mounting conditions | Non-flush |
| Operating voltage | AC/DC |
| Output function | 2-wire |
| Protection class | IP67 |
| Quality active face | PBT |
| Rated switching distance (mm) | 30 |
| Switching element function | NO contact |
| Switching frequency (kHz) | 0.02 |
