Inductive Sensor NI35-CP40-VP4X2/S369-F 30M
Inductive Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Cable length (m) | 30 |
| Design | Rectangular |

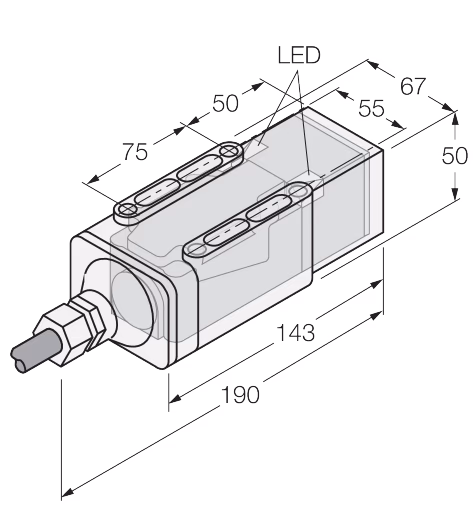

| Dimensions | 190 mm x 67 mm x 50 mm |
| Electrical output | Cable |
| Housing material | Plastic |
| Housing quality | Ultem |
| Mounting conditions | Non-flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP68 |
| Quality active face | Ultem |
| Rated switching distance (mm) | 35 |
| Special features | Underwater |
| Switching element function | Complementary contact |
| Switching frequency (kHz) | 0.15 |
