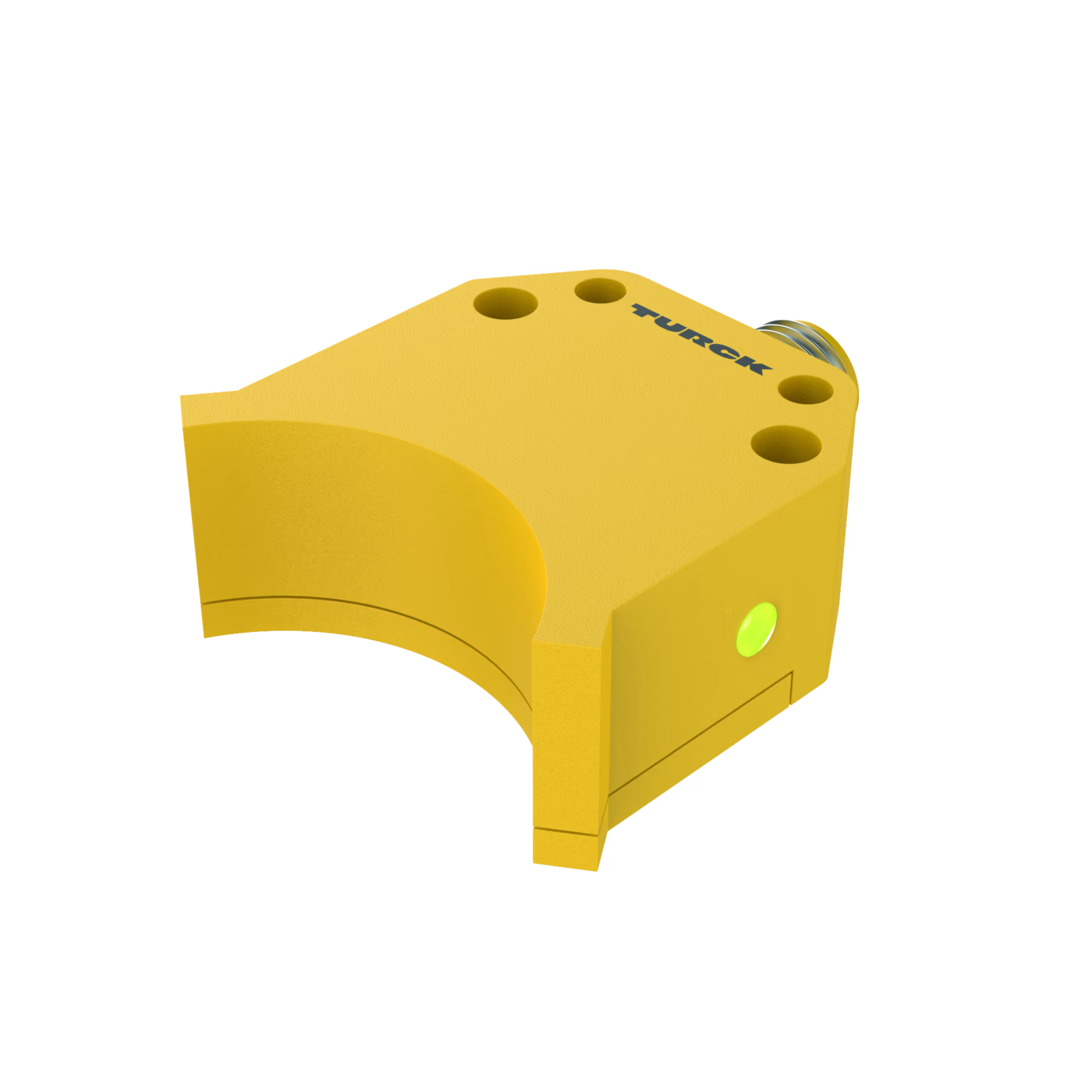

Inductive Sensor NI4-DS20-2Y1X2-H1140
Inductive Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Connector type | M12 × 1 |
| Design | Dual sensor for rotary actuators |
| Dimensions | 41.5 mm x 45 mm x 20 mm |
| Electrical output | Connector |
| Housing material | Plastic |
| Housing quality | PBT-GF30-V0 |
| Mounting conditions | Non-flush |
| Operating voltage | DC |
| Output function | NAMUR |
| Protection class | IP67 |
| Quality active face | PBT-GF30-V0 |
| Rated switching distance (mm) | 4 |
| Switching frequency (kHz) | 0.05 |
