Inductive Sensor NI4-DSU35-2AP4X2-H1141
Inductive Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Connector type | M12 × 1 |
| Design | Dual sensor for rotary actuators |

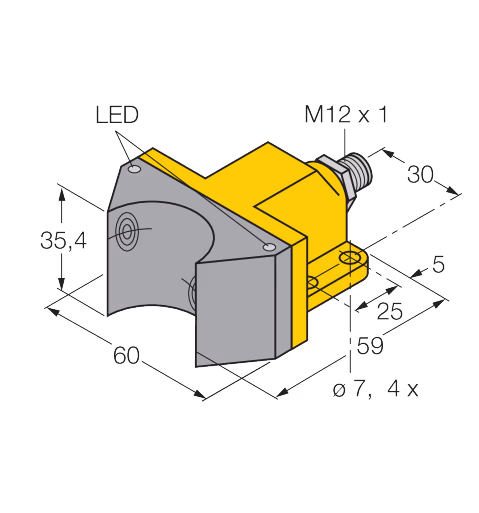

| Dimensions | 59 mm x 60 mm x 35.4 mm |
| Electrical output | Connector |
| Housing material | Plastic |
| Housing quality | PP-GF30 |
| Mounting conditions | Non-flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP67 |
| Quality active face | PP-GF30 |
| Rated switching distance (mm) | 4 |
| Switching element function | NO contact |
| Switching frequency (kHz) | 0.05 |
