Inductive Sensor NI40-CQ80/S1102 5M
Inductive Sensor
| Ambient temperature max. (°C) | 250 |
|---|---|
| Ambient temperature min. (°C) | |
| Cable length (m) | 5 |
| Connector type | M12 × 1 |

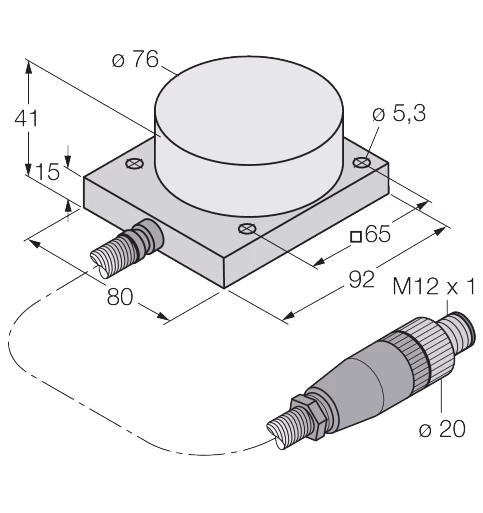

| Construction size | 92 x 80 x 41 mm |
| Design | Rectangular |
| Dimensions | 92 mm x 80 mm x 41 mm |
| Electrical output | Connector |
| Housing material | Plastic |
| Housing quality | AL |
| Mounting conditions | Non-flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP60 |
| Quality active face | PEEK |
| Rated switching distance (mm) | 40 |
| Switching element function | NO contact |
