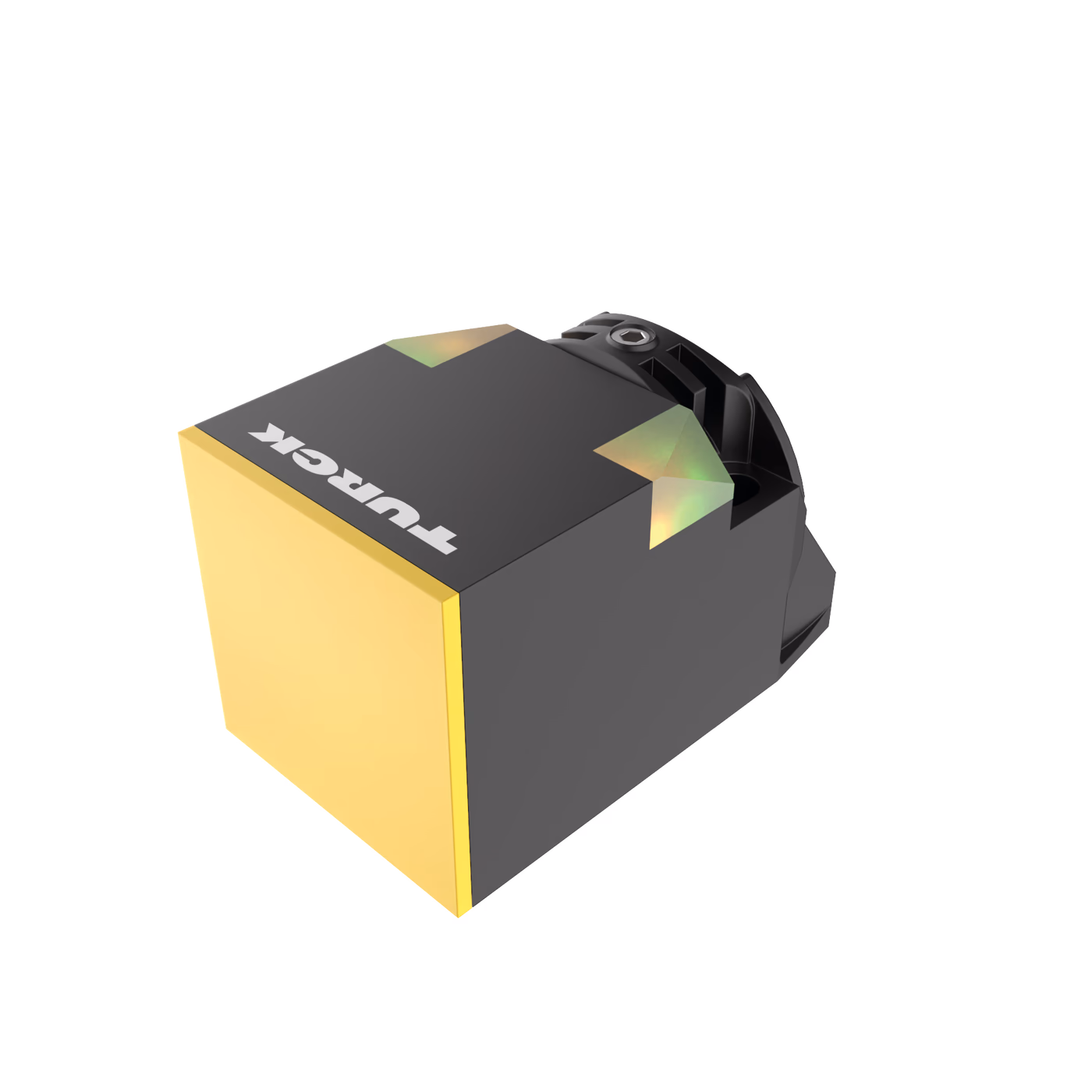

Inductive Sensor NI40C-CK40-VP6X2-H1141
Inductive Sensor
| Ambient temperature max. (°C) | 100 |
|---|---|
| Ambient temperature min. (°C) | |
| Connector type | M12 × 1 |
| Design | Rectangular |
| Dimensions | 65 mm x 40 mm x 40 mm |
| Electrical output | Connector |
| Housing material | Plastic |
| Housing quality | PBT-GF20-V0 |
| Mounting conditions | Non-flush |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP68 |
| Quality active face | PA12-GF30 |
| Rated switching distance (mm) | 40 |
| Special features | Carbon detection |
| Switching element function | Complementary contact |
| Switching frequency (kHz) | 0.25 |
