Industrial Ethernet Cable PSWS4M-PSWS4M-4414-0.15M
Industrial Ethernet Cable
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Application | Data |
| Approvals | cULus |
| Cable color | Green |
| Cable diameter (mm) | 4.8 |
| Cable length (m) | 0.15 |
| Cable quality | PUR |

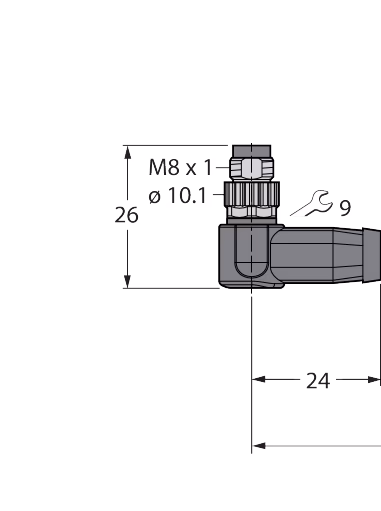

| Connector A | Angled, M8×1, Male |
| Connector B | Angled, M8×1, Male |
| Coupling nut/screw material A | Zinc |
| Coupling nut/screw material B | Die-cast Zinc |
| Current (A) | 3 |
| Design | Extension Cable |
| Network protocol | Ethernet |
| Number of Conductors | 4 |
| Number of pins | 4 |
| Plug body | Plastic |
| Voltage output | 42 |
| Core cross section mm? | 0.15 |
