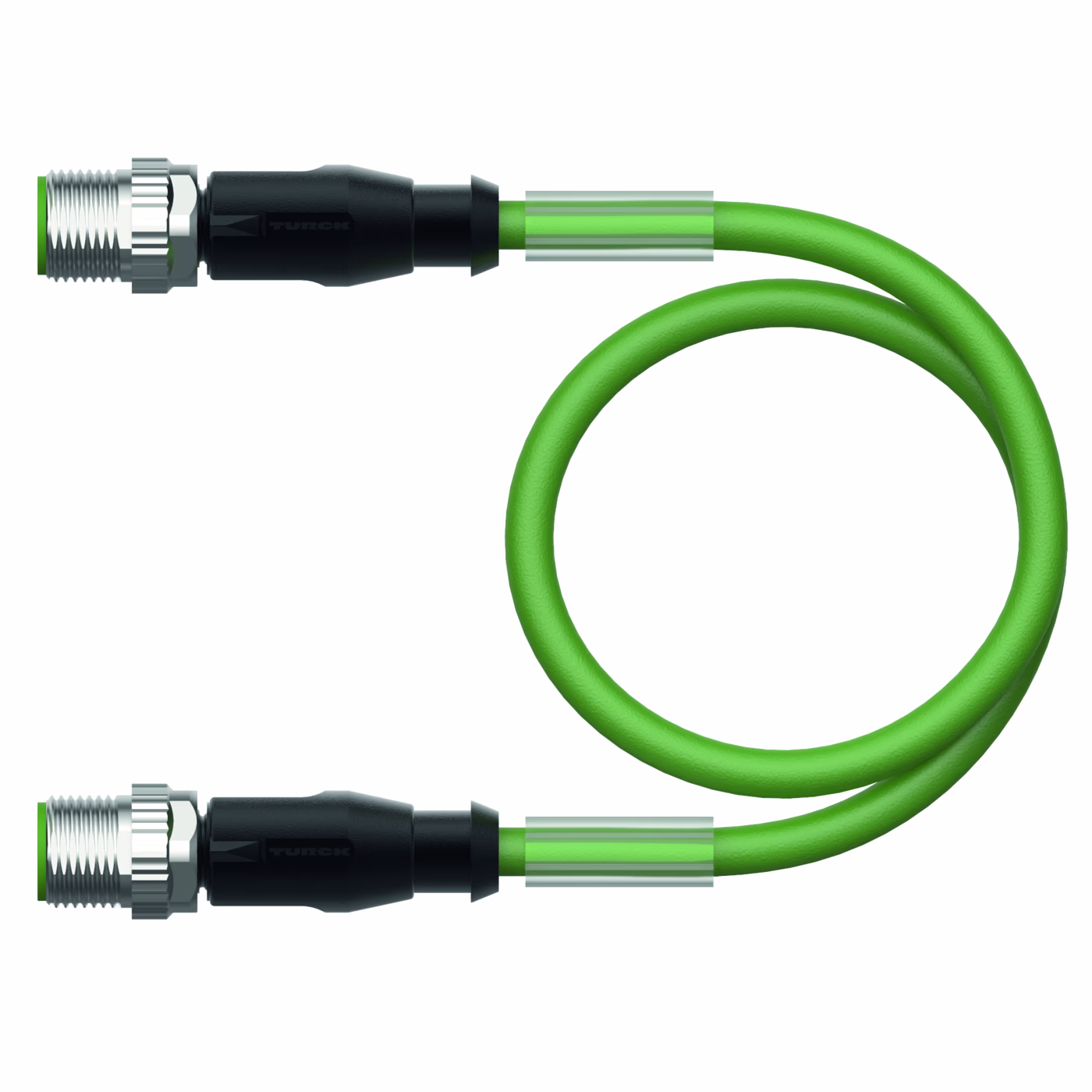

Industrial Ethernet Cable RSS-RSS-8814-1M
Industrial Ethernet Cable
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Application | Data |
| Approvals | cULus |
| Cable color | Green |
| Cable diameter (mm) | 8.9 |
| Cable length (m) | 1 |
| Cable quality | PUR |
| Connector A | A-coded, M12×1, Male, Straight |
| Connector B | A-coded, M12×1, Male, Straight |
| Coupling nut/screw material A | Brass |
| Coupling nut/screw material B | Brass |
| Design | Extension Cable |
| Network protocol | Ethernet |
| Number of Conductors | 8 |
| Number of pins | 8 |
| Plug body | Plastic |
| Core cross section mm? | 0.14 |
