Industrial Ethernet Cable RSS RSSD 441-2M
Industrial Ethernet Cable
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Application | Data |
| Approvals | cULus |
| Cable color | Green |

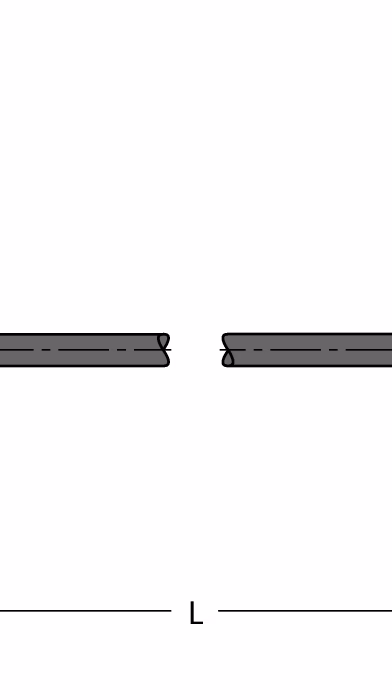

| Cable length (m) | 2 |
| Cable quality | TPE |
| Connector A | A-coded, M12×1, Male, Straight |
| Current (A) | 4 |
| Design | Extension Cable |
| Network protocol | Ethernet |
| Number of Conductors | 4 |
| Number of pins | 8 |
| Special features | Shielded |
| Voltage output | 48 |
| Connector B | D-coded, M12×1, Male, Straight |
| Core cross section mm? | 0.21 |
| Coupling nut/screw material A | Brass |
| Coupling nut/screw material B | Brass |
